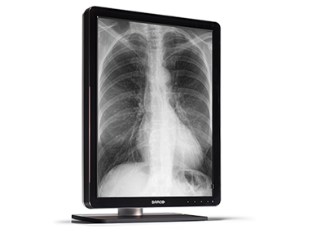

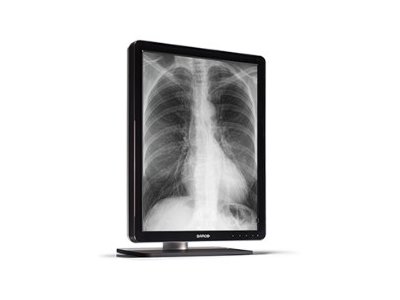

Coronis 3MP LED (MDCG-3221) 3MP premium diagnostic grayscale display system

Cena na telefon

Zapytanie o produkt Coronis 3MP LED (MDCG-3221) 3MP premium diagnostic grayscale display system

Pola wymagane
Produkt niedostępny

Coronis 3MP LED is the industry-leading display system for grayscale radiology imaging. It delivers optimum diagnostic precision and workflow efficiency for high-resolution PACS imaging, CT, MRI, chest radiology, angiography, etc.

50 more shades of gray

Barco's high-bright LED backlights render more Just Noticeable Differences to help you see more shades of gray. By making subtle details more noticeable more quickly, Coronis 3MP LED reduces windowing and leveling time so you can read your studies more efficiently.

Perfect images

Barco's image-enhancing technologies - designed for the unique characteristics of LED backlit medical displays - ensure perfect image quality at all times. PPU-LED reduces panel noise and renders uniform DICOM images from center to corner. An Intelligent Multi Sensor Technology system (I-MST) combines Barco's patented I-Guard front-of-screen sensor with backlight, ambient light and temperature sensors to optimize image quality and keep it consistent over time.

Green performance

Using energy-efficient LED backlights, Barco's Coronis 3MP LED is as low in power consumption as it is high in brightness. Additionally, Barco’s LED backlights are mercury-free, produce less heat, and last longer. This allows Barco to guarantee a 5-year backlight warranty.

Worry-free DICOM compliance

Barco's Coronis 3MP LED is bundled with MediCal QAWeb for automated calibration and QA, ensuring continuous diagnostic quality and maximum uptime of your workstation. MediCal QAWeb allows you to continue working while automated QA checks are being executed. The system also includes a secure online web service for remote, centralized image quality management.



3 MegaPixel resolution (1,536 x 2,048) 21-inch screen diagonal Grayscale display Long lifetime LED technology Designed and assembled with special attention for the protection of our environment Integrated front-of-screen sensor MediCal QA software
included Per Pixel Uniformity correction Ultra-smooth grayscale
precision Integrated Ambient Light Compensation Anti-reflective protective front cover Usable in portrait and
landscape mode DisplayPort ready Standard 5-year warranty

Features

  • High-bright LED backlights ensuring more grayscales
  • Power-efficient LED backlights reducing overall operational and maintenance costs
  • Intelligent Multi-Sensor Technology system for consistent image quality
  • PPU-LED for uniform images across the entire screen
  • Continuous, worry-free DICOM-compliance under all lighting conditions
  • Web-based service for transparent calibration and QA
  • Smart, ergonomic design



Screen technology UA-SFT (ultra advanced - super fine technology)
Backlight LED
Active screen size (diagonal) 540 mm (21.3")
Active screen size (H x V) 325 mm x 433 mm (12.8” x 17.1”)
Aspect ratio (H:V) 4:3
Resolution 3MP (2048 x 1536)
Pixel pitch 0.2115 mm
Color imaging No
Gray imaging Yes
Number of grayscales (LUT in/LUT out) 1024 grey levels (10/12)
Viewing angle (H, V) 178°
Uniform Luminance Technology (ULT) Yes
Per Pixel Uniformity (PPU) Yes
Ambient Light Compensation (ALC) Yes
Backlight Output Stabilization (BLOS) Yes
I-Guard Yes
Maximum luminance 1700 cd/m² typical
DICOM calibrated luminance 600 cd/m²
Contrast ratio (ULT off) 1400:1 typical
Response time (Tr + Tf) 40 ms
Scanning frequency (H; V) 15-129 kHz; 24-100 Hz
Housing color Black / White
Video input signals DVI-D Dual Link, DisplayPort
USB ports 1 upstream (endpoint), 2 downstream
USB standard 2.0
Power requirements (nominal) 100-240V
Power consumption (nominal) 40W
Power save mode Yes
Power management DVI-DMPM
Dot clock 280 MHz
OSD languages English, German, French, Dutch, Spanish, Italian, Portugese, Polish, Russian, Swedish, Chinese (simplified), Japanese, Korean, Arabic
Dimensions with stand (W x H x D) Portrait: 378 x 528~628 x 235 mm
Landscape: 491 x 472~572 x 235 mm
Dimensions w/o stand (W x H x D) 378 x 491 x 84 mm
Dimensions packaged (W x H x D) 686 x 342 x 585 mm
Net weight with stand 12.8 kg
Net weight w/o stand 8 kg
Net weight packaged with stand 17,7 kg
Net weight packaged w/o stand N/A
Height adjustment range 100 mm
Tilt -5° / +25°
Swivel -30° / +30°
Pivot N/A
Mounting standard VESA (100 mm)
Screen protection Protective, non-reflective glass cover
Recommended modalities CT, MR, US, DR, CR, NM, Film
Certifications CE0120 (MDD 93/42/EEC; A1:2007/47/EC class II b product), CE - 2004/108/EC, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1:2005 + A1:2012, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No. 60601-1(2008), DEMKO - EN 60601-1:2006, EN 60601-1-2:2007, CCC - GB9254-2008 + GB4943.1-2011 + GB17625.1-2003, KCC, VCCI, FCC class B, ICES-001 Level B, FDA 510(k), RoHS
Supplied accessories User Guide
Quick Installation Sheet
Video cables (1 x DVI Dual Link, 1 x DisplayPort)
Main cables (UK, European (CEBEC/KEMA), USA (UL/CSA; adaptor plug NEMA 5-15P), Chinese (CCC))
USB 2.0 cable
External power supply
QA software MediCal QAWeb
Warranty 5 years
Operating temperature 0°C to 40°C (15°C to 30°C within specs)
Storage temperature -20°C to 60°C
Operating humidity 8% - 80% (non-condensing)
Storage humidity 5% - 95% (non-condensing)
Operating altitude 2000 m
  7500 m
