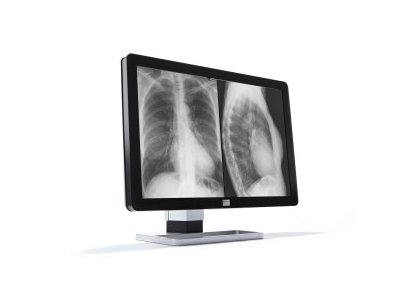

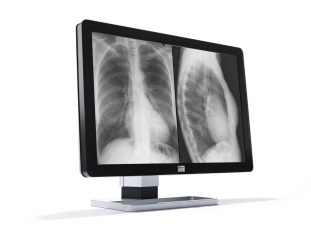

Nothing less than filmless perfection; that's what you can expect from the Coronis Fusion 10MP display system.
Ultra-precise grayscale imaging
Equipped with proprietary 'SmoothGray' technology for a meticulously rendered grayscale curve, the Coronis Fusion 10MP makes subtle details and lesions more noticeable than ever before. Add to this exceptionally high brightness and contrast levels, truly dark blacks and perfect geometry and you begin to understand that supreme grayscale precision has a new meaning.
Seamless 30-inch desktop
Thanks to the seamless 30-inch LCD screen, you can easily compare prior and current mammography images without the annoyance of a central bezel. Moreover, it allows you to review X-ray chest images or 40 full-resolution CT or MR images with superb diagnostic precision on a single screen.
Worry-free Quality Assurance
The integrated I-Guard sensor makes Quality Assurance an easy job. Combined with the online MediCal QAWeb solution, I-Guard performs intervention-free DICOM calibrations, Quality Assurance tests and remote assessment of your display.
5-year warranty, zero worries
No more worries about unscheduled downtime or unexpected expenses. Coronis Fusion 10MP comes with a 5-year warranty for complete peace of mind.
An ideal solution for:
• CR/DR (chest, orthopedics, pediatrics,...) • CT (up to 40 full-resolution images)
• Digital mammography
• MRI (breast,...)
Ultra-smooth grayscale perfection
Superb grayscale precision and improved visibility of subtle details thanks to proprietary 'SmoothGray' technology, generating an ultra-smooth palette of grayscales.
Pinpoint diagnostic detail
Exceptional image precision thanks to the 10 MegaPixel LCD panel (4,096 x 2,560), delivering superb brightness and contrast.
First-class reading comfort
Flexible display of images from various modalities with the seamless 30-inch workspace
A perfect view from any angle
Uncompromised diagnostic quality from any seat in the reading room thanks to sophisticated IPS WideView LCD technology.
Worry-free DICOM compliance
Continuous DICOM-quality, worry-free Quality Assurance and centralized asset management with MediCal QAWeb and I-Guard sensor technology.
Uniform brightness across the screen
Uniform brightness across the entire screen thanks to second generation Uniform Luminance Technology.
Thanks to its DisplayPort interface, Coronis Fusion 10MP supports fast and reliable data transfers. It also has DVI connectors for a truly flexible plug and play installation.
Complete peace of mind
Complete peace of mind and lowest cost of ownership with the standard 5-year warranty.
Committed to a greener future
At Barco, we share your commitment to building a greener future. That's why the new Coronis Fusion 10MP has been designed and assembled with special attention for the protection of our environment and natural resources.
We use carefully selected eco-friendly components from audited suppliers.
We reduce the amount of hazardous substances (RoHS).
We make optimum use of material, power, space and logistics.
We build products that consume less energy and apply smart power saving techniques.
We help organize the collection of electronic waste (WEEE).
|Screen technology||TFT AM LCD Dual Domain IPS|
|Active screen size (diagonal)||761 mm (29.6")|
|Active screen size (H x V)||645 x 403 mm (25.4 x 15.9")|
|Aspect ratio (H:V)||16:10|
|Resolution||native 10MP (4096 x 2560)
configurable to 2 x 5MP (2048 x 2560)
|Pixel pitch||0.1575 mm|
|Number of grayscales (LUT in/LUT out)||1024 grey levels (10/12)|
|Viewing angle (H, V)||170°|
|Uniform Luminance Technology (ULT)||Yes|
|Per Pixel Uniformity (PPU)||No|
|Ambient Light Compensation (ALC)||Yes|
|Backlight Output Stabilization (BLOS)||Yes|
|Maximum luminance||1250 cd/m² (panel typical)|
|DICOM calibrated luminance (ULT off)||500 cd/m² (panel typical)|
|Contrast ratio (ULT off)||950:1 (panel typical)|
|Response time (Tr + Tf)||35 ms|
|Video input signals||DVI-D Dual Link (2x) / DisplayPort (2x)|
|USB ports||1 upstream (endpoint), 3 downstream|
|Power consumption (nominal)||102W|
|Power save mode||Yes|
|Dimensions with stand (W x H x D)||Portrait: NA
Landscape: 731 x 580~670 x 270 mm
|Dimensions w/o stand (W x H x D)||Portrait: NA
Landscape: 731 x 485 x 125 mm
|Net weight with stand||24.2 kg|
|Mounting standard||VESA (100 mm)|
|Screen protection||Protective, non-reflective glass cover|
|Recommended modalities||CT, MR, US, DR, CR, NM, Film|
|Certifications||CE0120 (MDD 93/42/EEC class IIb product), CE - 2004/108/EC, CE - 93/42/EEC; A1:2007/47/EC class II b, UL 60601-1 1ST EDITION, CAN/CSA-C22.2 NO. 601.1-M90:2005, IEC 60601-1 2ND ED:1988 + A1:1991 + A2:1995, IEC 60950-1:2005 2ND EDITION, DEMKO - EN 60601-1:1990 + A1:1993 + A2:1995, VCCI, FCC class B, BSMI, FDA 510K, RoHS, KC|
|Supplied accessories||User Guide
Video cables (2 x DVI Dual Link, 2 x DisplayPort)
Main cables (UK, European (CEBEC/KEMA), USA (UL/ CSA; adaptor plug NEMA 5-15P), Chinese (CCC))
USB 2.0 cable
External power supply
|QA software||MediCal QAWeb|
