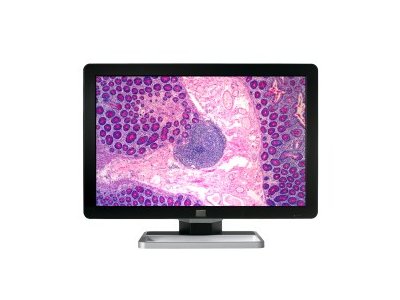

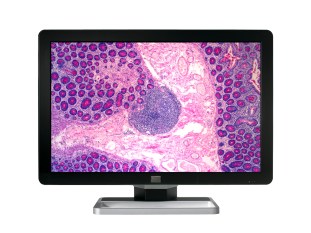

Coronis Fusion 4MP DL is a 30-inch pathology display system designed to further enhance flexibility and productivity in pathology imaging.
Enhanced viewing comfort
With the Coronis Fusion 4MP DL, there are no more boundaries. Its ingenious design allows you to use the 30-inch workstation as two seamless 2 MegaPixel heads or one wide-screen 4 MegaPixel display. The choice is yours.
Addressing the needs of both grayscale and color imaging, the Coronis Fusion 4MP DL allows you to read multiple images side by side on a single screen.
A perfect view from every angle
Coronis Fusion 4MP DL features the latest, breakthrough In-Plane Switching (IPS-Pro) LCD technology. This technology brings the most advanced LCD viewing characteristics on the market, setting new standards for brightness and contrast, even from a wide viewing angle.
Multi-modality PACS imaging
The system delivers a maximum luminance of 1000 cd/m², allowing for simultaneous reading of color, grayscale and fused modalities on a single display.
The integrated ULT of Coronis Fusion 4MP DL distributes the brightness equally over the entire 30-inch screen surface. Supported by an intelligent backlight design, this reduces non-uniformities caused by the LCD as well as the backlight to less than 10%. As a result, all images comply perfectly to the DICOM standard, no matter where they are positioned on the screen.
Automated Quality Assurance
The latest version of MediCal QAWeb, combined with the unique I-Guard sensor, ensures fully automated image Quality Assurance with no need for human intervention. MediCal QAWeb tracks, maintains and logs viewing performance, automates QA tasks, initiates display system calibration and establishes an accurate DICOM Look-Up Table calibration.
The Coronis Fusion 4MP DL display system is driven by a high-speed MXRT display controller, specifically designed to support 3D PACS applications with 30-bit color precision.
|Screen technology||TFT AM Color LCD Dual Domain IPS-Pro|
|Active screen size (diagonal)||758.36 mm (29.9")|
|Active screen size (H x V)||641.208 x 404.808 mm (25.25 x 15.94")|
|Aspect ratio (H:V)||16:10|
|Resolution||native 4MP (2560 x 1600)
configurable to 2 x 2MP+ (1280 x 1600)
configurable to 2 x 2MP (1200 x 1600)
|Pixel pitch||0.2505 mm|
|Color support||30 bit|
|Viewing angle (H, V)||170°|
|Uniform Luminance Technology (ULT)||Yes|
|Per Pixel Uniformity (PPU)||No|
|Ambient Light Compensation (ALC)||Yes|
|Backlight Output Stabilization (BLOS)||Yes (1x)|
|Maximum luminance||1000 cd/m²|
|DICOM calibrated luminance (ULT off)||500 cd/m²|
|Contrast ratio (dark reading room, typical)||1100:1|
|Response time (Tr + Tf)||20 ms|
|Video input signals||DVI-D Dual Link (2x)|
|USB ports||1 upstream (endpoint), 3 downstream|
|Power consumption (nominal)||135W|
|Power save mode||Yes|
|Dimensions with stand (W x H x D)||Portrait: NA
Landscape: 731 x 580~676 x 265 mm
|Dimensions w/o stand (W x H x D)||Portrait: NA
Landscape: 731 x 485 x 141 mm
|Net weight with stand||28.1 kg|
|Mounting standard||VESA (100 mm)|
|Screen protection||Protective, non-reflective glass cover|
|Recommended modalities||CT, MR, US, DR, CR, NM, Film|
|Certifications||UL 60601-1 1ST EDITION, CAN/CSA-C22.2 NO. 601.1- M90, IEC 60601-1 2ND ED:1988 + A1:1991 + A2:1995, IEC 60950-1:2001 1ST EDITION, CE - 89/336/EEC, CE - 93/42/EEC, DEMKO - EN 60601-1, BSMI - CNS13438(95) + CNS14336(94), VCCI, FCC class B, ICES-001 Level B, MDD class IIb, RoHS, KC, CCC - GB9254-2008 + GB4943-2001 + GB17625.1-2003|
|Supplied accessories||Getting Started Guide
Video cables (2 x DVI Dual Link)
Main cables (UK, European (CEBEC/KEMA), USA (UL/CSA; adaptor plug NEMA 5-15P), Chinese (CCC))
USB 2.0 cable
External power supply
|QA software||MediCal QAWeb|
