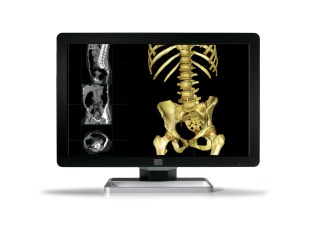

Coronis Fusion 6MP LED MDCC-6330

Cena na telefon

Zapytanie o produkt Coronis Fusion 6MP LED MDCC-6330

Pola wymagane
Produkt niedostępny

6MP diagnostic color display system

  • 4th generation Fusion display
  • Clever image-enhancing features
  • With toolset to spark productivity

The first-ever Fusion display on the market and already in its 4th generation. That's Coronis Fusion 6MP. This multi-modality diagnostic display system comes with clever image-enhancing features, boosting productivity and viewing ergonomics.

Redesigned to push productivity

Coronis Fusion 6MP features the latest exclusive IPS-Pro LCD technology, bringing perfect images under any viewing angle to ensure a screen area that is 100% ACR compliant. It also offers uniformity correction on the pixel level (PPU) to eliminate screen noise. Add to this the brighter calibrated luminance, and you'll be able to see subtle details quicker, requiring less zooming and panning when reading images.

To further boost productivity, Coronis Fusion 6MP comes with some of Barco's unique productivity tools. With stunning SpotViewTM technology, you can focus the light on lesions or abnormalities that require extra attention.  And DimViewTM automatically dims the auxiliary displays used for patient worklists or dictation, so you can keep your focus on the details that really matter.

A pleasure for your eyes

The latest design is smarter and lighter to match the ergonomics of your reading room and to allow for easy display manipulation. What's more, reflection of the front glass has been further reduced, which is exactly how Coronis Fusion 6MP helps reduce eye strain.

With I-MST (Intelligent Multi Sensor Technology), front-of-screen, backlight, ambient light and temperature sensors work together seamlessly to optimize image quality and to keep it consistent over time.

Proven performance

Proven to increase productivity by up to 19% compared to a dual-head 3MP set-up (see Montefiore study) and lauded with the Frost and Sullivan product line strategy award, Coronis Fusion 6MP has become Barco's flagship product, with thousands of units installed in over 70 countries worldwide.

A one-stop-shop solution

Barco medical displays include proprietary display controllers that are validated with the latest workstations and with all major PACS applications. They also include seamlessly integrated technologies and features to boost functionality and performance.

Like all of Barco's medical display systems, Coronis Fusion 6MP comes with MediCal QAWeb, a cloud-based technology for automated calibration and Quality Assurance to ensure maximum uptime of the display.

This product is not yet commercially available in the United States.



6 MegaPixel resolution (3,280 x 2,048) 30-inch screen diagonal Seamless wide-screen desktop Color display Grayscale display Long lifetime LED technology Integrated front-of-screen sensor Diagnostic Luminance (Ultra bright display) Ensures consistent colors and grayscales Focuses the light on things you want to have a closer look at MediCal QA software
included Ultra-smooth grayscale
precision Integrated Ambient Light Compensation 30 bit Look Up Table DisplayPort ready Standard 5-year warranty Designed and assembled with special attention for the protection of our environment Anti-reflective protective
front glass
Screen technology TFT AM Color LCD Dual Domain IPS-Pro
Active screen size (diagonal) 772 mm (30.4")
Active screen size (H x V) 654 x 409 mm (25.8 x 16.1")
Aspect ratio (H:V) 16:10
Resolution Native 6MP (3280 x 2048)
Configurable to 2 x 3MP+ (1640 X 2048)
Configurable to 2 x 3MP (1536 X 2048)
Pixel pitch 0.1995 mm
Color imaging Yes
Gray imaging Yes
Color support 30 bit
Viewing angle (H, V) 178°
Uniform Luminance Technology (ULT) Yes
Per Pixel Uniformity (PPU-LED)

Yes (color PPU)

Ambient Light Compensation (ALC) Yes
Backlight Output Stabilization (BLOS) Yes (2x)
I-Guard Yes
Maximum luminance 720 cd/m²
DICOM calibrated luminance (ULT off) 500 cd/m²
Contrast ratio (dark reading room, typical) 1000:1 (panel typical)
Response time (Tr + Tf) 18 ms
Housing color Black / silver
Video input signals DVI-D Dual Link (2x), DisplayPort (2x)
Video inout terminals NA
USB ports 1 upstream (endpoint), 3 downstream
USB standard 2.0
Power requirements (nominal) 100-240V
Power consumption (nominal)

100W

Power save mode

Yes (less than 0.5W)

Power management DVI-DMPM, DP-DMPM
OSD languages English, German, French, Dutch, Spanish, Italian, Portuguese, Polish, Russian, Swedish, Chinese (simplified), Japanese, Korean, Arabic
Dimensions with stand (W x H x D) Portrait: NA

Landscape: 730 x 580~675 x 261 mm

Dimensions w/o stand (W x H x D) Portrait: NA

Landscape: 730 x 485 x 125 mm

Dimensions packaged (W x H x D) 860 x 760 x 390 mm
Net weight with stand

20.5 kg

Net weight w/o stand

14 kg

Net weight packaged with stand 29.5 kg
Net weight packaged w/o stand NA
Height adjustment range 96 mm
Tilt -5° / +25°
Swivel -30° / +30°
Pivot NA
Mounting standard VESA (100 mm)
Screen protection Protective, non-reflective glass cover
Recommended modalities

CT, MR, US, DR, CR, NM, PET

Certifications CE0120 (MDD 93/42/EEC; A1:2007/47/EC class IIb product), CE - 2004/108/EC, IEC 60950-1:2005 + A1:2009, EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013, IEC 60601-1:2005, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A2:2010, CAN/CSA C22.2 No. 60601-1 (2008), EN 60601-1:2006 + A11:2011, EN 60601-1-2:2007, CCC - GB9254-2008 + GB4943.1-2011 + GB17625.1-2012, KCC, VCCI, FCC class B, ICES-001 Level B, FDA 510(k), RoHS
Supplied accessories User Guide
Quick Install Sheet
Documentation CD
System CD
Video cables (2 x DVI Dual Link, 2 x DisplayPort)
Mains cables (UK, European (CEBEC/KEMA), USA (UL/CSA; adaptor plug NEMA 5-15P), Chinese (CCC))
USB 2.0 cable
External power supply
Optional accessories Graphics board
QA software MediCal QAWeb
Units per pallet NA
Pallet dimensions (W x H) NA
Warranty 5 years
Operating temperature 0°C to 35°C (15°C to 30°C within specs)
Storage temperature -20°C to 60°C
Operating humidity 8% - 80% (non-condensing)
Storage humidity 5% - 93% (non-condensing)
Operating altitude 3000 m
