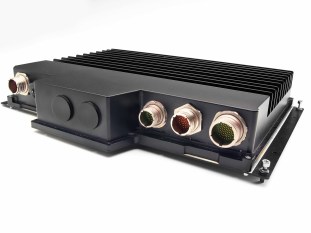

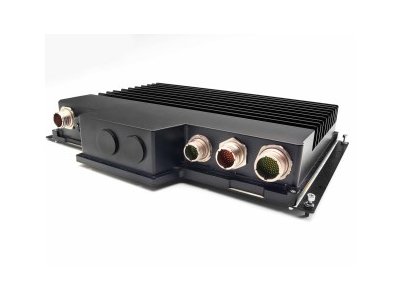

DPM-2 Rugged Display Processing Module

Cena na telefon

Zapytanie o produkt DPM-2 Rugged Display Processing Module

Pola wymagane
Produkt niedostępny

Compact design and MIL-qualified

The DPM-2 is Barco's field-proven rugged Display Processing Module for use in wheeled military vehicles, mobile shelters and naval applications. The Barco DPM-2 delivers the latest in industrial workstation class PCIe graphics and Intel® Mobile CoreTM computing performance; packaged in a compact, sealed and rugged enclosure. Barco's DPM-2 rugged computer is fully MIL qualified for use in harsh operating conditions.

Hardware-accelerated streaming and 3D imaging

Barco’s DPM-2 supports networked, real-time video streaming and processing (e.g. image fusion) for better situational awareness and enhanced decision-making. The workstation class GPU enables hardware-acceleration for video streaming and best-in-class 3D imaging.

Design for integration

The DPM-2 offers wide connectivity to any vehicle position, including driver, soldier and commander. Barco's DPM-2 represents the most reliable mission-critical computer for demanding operations in harsh environments.

Features

  • Powerful processing performance in extreme conditions
  • Modular and open architecture allowing the most recent PCIe graphics cards
  • Rugged design for on-the-move operations
  • High-resolution network video streaming
  • High-performance image processing
  • Extensive range of I/O options
  • Dual Ethernet featuring high redundancy
  • Scalable architecture for custom-made applications
  • Easy local or remote maintenance
General specifications
Computing Intel® Dual-Core™ i7-2655LE, 2x 2.2GHz, 8GB ECC RAM
Graphics card NVIDIA® K2000D
Storage capacity 128GB Removable SSD, SATA II compliant (3 Gb/sec)
Inputs - Outputs 2x Gig Ethernet,
4x RS-232,
1x Audio,
2x DVI-D (clone)
4x USB 2.0,
2x PS/2
1x Maintenance
1x System Reset
Option slots 1x PCIe
1x Video Input expansion slot
Operating system Microsoft Windows 7 Professional for Embedded Systems, 64-bit
Power Supply 28VDC
Power consumption Power consumption <200W typ., 300W max
Dimensions 420 x 319 x 63mm / 16.5" x 12.6" x 2.5" (w x d x h)
Weight 7.8 kg / 17.2 lbs
Environmental (MIL-STD-810G)
Operating temperature: -30 to +55 °C (+71°C with fans)
Storage temperature: -40 to +71 °C
Humidity: 95%, 60 °C
Altitude: 35,000ft operating, 40,000ft non-operating
Salt fog: 48-hours, 5% concentration
Sand and dust: blowing sand/dust
Ingress protection: IP 65
Vibration: Trailer and Composite Wheeled Vehicles
Shock: 40g, 23ms (6 shocks/axis)
EMI / EMC (MIL-STD 461F)
Ground army
Options
Storage upgrade 256GB Removable SSD, SATA II compliant (3Gb/sec)
Barco Video Input Board 3x PAL/NTSC Video
Operating systems Microsoft Windows XP, 32-bit RedHat Linux Enterprise Linux 6.x, 64-bit
Barco CommonSENSE Advanced Includes advanced image processing functions such as fusion
Rugged keyboard Includes integrated pointing device
