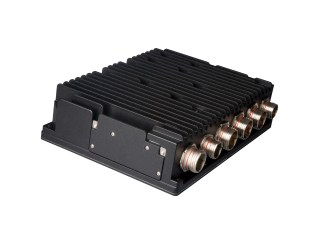

DPM-3 Rugged Display Processing Module

Cena na telefon

Zapytanie o produkt DPM-3 Rugged Display Processing Module

Pola wymagane
Produkt niedostępny

Compact design and MIL-qualified

Barco's DPM-3 computer is used for on-the-move operations in space-constrained crew stations of combat and tactical vehicles, and helicopters. The Barco DPM-3 delivers the latest MXM graphics and Intel® Mobile CoreTM computing power, and is fully MIL qualified and field-proven.

The DPM-3 rugged computer is designed for optimal SWaP-C (Size, Weight, Power and Cost), offering the most compact package in its processing class, and ruggedization for the most extreme environments. Its modular and open architecture offers the possibility to create a complete, customized solution.

Real-time video processing

Barco's DPM-3 easily connects to a wide range of sensors and the discrete GPU enables hardware-accelerated image processing. The DPM-3 rugged computer features advanced video processing (e.g. image fusion) and offers high resolution video streaming functionality for improved situational awareness.

Features

  • Powerful processing performance in extreme conditions
  • Modular and open architecture allowing the most recent MXM graphics cards
  • Rugged design for on-the-move operations
  • High-resolution network video streaming
  • High-performance image processing
  • Extensive range of I/O options
  • Dual Ethernet featuring high redundancy
  • Scalable architecture for custom-made applications
  • Easy local or remote maintenance
General specifications
Computing Intel® Dual-Core™ i7-2655LE, 2x 2.2GHz, 8GB ECC RAM
Graphics card Integrated Intel® HD Graphics 3000
Storage capacity 128GB Removable SSD, SATA II compliant (3 Gb/sec)
Inputs - Outputs 2x Intel PRO1000 Gigabit Ethernet port
6x USB 2.0
8x serial lines (RS232/RS422/RS485)
2x CAN bus, CAN 2.0B compliant
HD audio in/out/micro AC 97
4x video inputs RS170, PAL/NTSC
I/O isolated or buffered as applicable
Option slots 1x MXM
2x XMC
1x Vehicle I/O extension slot
Operating system Microsoft Windows 7 Professional for Embedded Systems, 64-bit
Power Supply 28VDC, MIL-STD-1275D compliant, IES hold-up compliant
Power consumption Power consumption 50W typ., 80W max (without heaters)
Dimensions 305 x 217 x 76mm / 12.00" x 8.50" x 3.00" (w x d x h)
Weight 5 kg / 11 lbs
Environmental (MIL-STD-810G)
Operating temperature: -46 to +65 °C (+71°C with limitations)
Storage temperature: -46 to +85 °C
Thermal shock: -46 to +85 °C
Humidity: 95%, 60 °C
Altitude: 15,000ft operating, 40,000ft non-operating
Salt fog: 48-hours, 5% concentration
Sand and dust: blowing sand/dust
Ingress protection: 1 meter immersion for 30 minutes
Vibration: Tracked Vehicle profile
Shock: 40g, 23ms (6 shocks/axis)
EMI / EMC (MIL-STD 461F)
Ground army
Options
Graphics upgrade AMD® MXM E6760 GPU
Storage upgrade 256GB Removable SSD, SATA II compliant (3Gb/sec)
Barco Video XMC Board (VXB) 4x PAL/NTSC Video
1x RGB Input
2x HD-SDI Inputs
1x Gigabit Ethernet (GigE Vision or DEF-STAN 00-82 streaming)
Gen-locking
Real-Time video processing
Barco vehicle I/O extension board 16x digital input, contact to the vehicle chassis ground
4x digital outputs, 300 mA, referenced to the vehicle VBAT (32V max Low Side)
4x digital outputs, 2 A, referenced to the vehicle GND (High Side)
4x analog inputs (2 x 0 to 5V and 2 x 0 to 36V)
Serial I/O PMC 4x serial ports (RS-232/422/485)
Operating systems Microsoft Windows XP, 32-bit RedHat Linux Enterprise Linux 6.x, 64-bit
Barco CommonSENSE Advanced Includes advanced image processing functions such as fusion
Rugged keyboard Includes integrated pointing device
