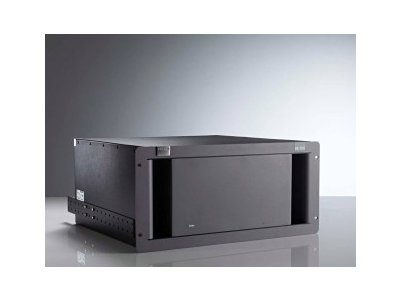

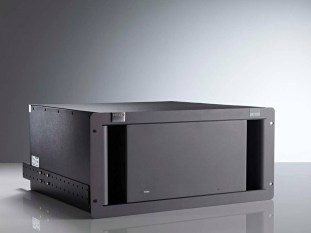

The DX-100 is a single-window video processor designed as a versatile front-end to a wide range of Barco LED displays. With color calibration, genlocking, DVI/(HD)SDI input and both DVI and NNI output modules and a wide variety of show effects, the DX-100 is an ideal and user-friendly choice to boost the performance of your display.
designed for LED displays I/O compatibility with sources up to 1080p HD

Features

Features
  • Digital effects
  • Color correction and enhancement
  • External genlock
  • Advanced delay modes
  • Internal test patterns
Inputs/Outputs
  • Single/dual link DVI inputs
  • EDID support
  • SD-SDI/HD-SDI Input
  • Genlock input
  • Removable Single-channel NNI output/Three-channel DVI output
Control
  • DTS (v2.05 or later)
Mechanical
  • Rack-mountable (5RU)
  • Auto-ranging power supply

This product is an option of the following products

MiSTRIP

Small pitch, LED pixel strip

Article number: R9010565B8

ILite 6 BK

6mm pixel pitch, 2,000 nits surface-mounted LED tile

Article number: R9010251B1

TF16BK

16mm pixel pitch, 6,000 nits black lamp LED tile

Article number: R9004829

C5

5.5mm pixel pitch, black face indoor LED display

Article number: R9052928B1

OLite 612 Fixed

Small pitch, surface-mounted creative LED tile

Article number: R9010412

C8

8.33mm pixel pitch, 5,000 nits outdoor LED display

Article number: R9052943B1

NX6

6mm pixel pitch, 2,000 nits, true black surface-mounted LED tile

Article number: R9052780B1

C16

16.7mm pixel pitch, 2,000 nits indoor LED display

Article number: R9052929B1

SF-10v

Outdoor LED video display for sports applications


Article number: R9004843

SP-4816

16mm pixel pitch, 6,000 nits LED sports perimeter system

NX4s

4.66mm pixel pitch, 2,000 nits, true black surface-mounted LED tile

Article number: R9052926F6

TF16

16mm pixel pitch, 6,000 nits outdoor LED tile for fixed installation

Article number: R9004864 (front access),R9004865 (back access)

FLX-24

Medium pitch, 24mm transformable LED module

Article number: R9052900

C7

7mm pixel pitch, 2,000 nits, surface-mounted LED tile

Article number: R9052933B1

TF10

10.2mm pixel pitch, 6,500 nits outdoor LED tile for fixed installation

Article number: R9004860

X8

8.6mm pixel pitch, 4,200 nits outdoor SMD LED display

Article number: R9004491F3

FLX-60

Large pitch, 60mm transformable LED module

Article number: R9052800

Input
  • SDI
    • 8NTSC/PAL per SMPTE 259M
    • HD 720p per SMPTE 296M / HD 1080i per SMPTE 292M
  • DVI
    • RGB/YCbCr
    • All supported to maximum pixel rate: Single link (165MHz) / Dual link (240MHz)
Output
  • Removable
  • NNI
    • Proprietary Barco format on an HDMI connector
    • Up to 2048 pixels either horizontally or vertically.
      • Maximum active area: 768K pixels
      • 12 bits per RGB per pixel
  • DVI
    • Proprietary Barco format on an DVI connector
    • Up to 2048 pixels either horizontally or vertically.
      • Maximum active area: 3x 480K pixels
Processing
  • Number of layers: 1
  • Number of layers: 1
  • Ext. Genlock: Composite sync signal (standard or tri -level) or black burst. Termination is 75 ohms, +/- 0.1%.
  • Video Delay
    • Min. delay mode: 2 ms
    • Video Delay
      • Min. delay mode: 2 ms
      • Reduced delay mode
        • Progressive sources: 2ms
        • Interlaced sources: 23ms @ 50Hz / 19ms @ 60Hz
Physical and Electrical
  • Power Input: 100-240 VAC, 50-60 Hz
  • Power consumption: 180 watts maximum
  • Mechanical:
    • H: 8.75 inches (22.22 cm)
    • W: 17.00 inches (43.18 cm)
    • W: 19.00 inches (48.26 cm) with rackmount wings
    • D: 17.00 inches (43.18 cm), excluding connectors and latches
    • 5RU rackmount
  • Temperature: 0-40 degrees C
  • Humidity: 0-95% non-condensing
  • Chassis Weight: 52 lbs. (23.6 kg)
