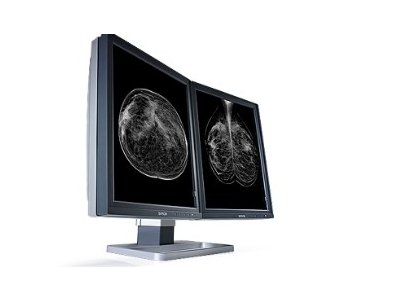

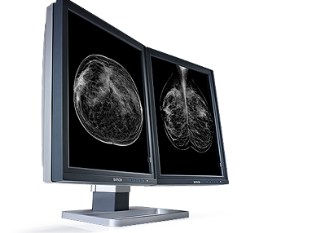

Mammo Tomosynthesis 5MP (MDMG-5221) 5 MegaPixel display system for digital breast imaging, including breast tomosynthesis

Cena na telefon
Produkt niedostępny

Optimized for digital breast tomosynthesis

Barco's Mammo Tomosynthesis 5MP has been developed to optimize reading and interpretation of digital breast tomosynthesis, a groundbreaking imaging modality that significantly improves accuracy of breast cancer detection. Its unique technologies for tomosynthesis visualization increase conspicuity of the smallest details, providing radiologists with a new degree of diagnostic confidence.

The Mammo Tomosynthesis 5MP is the first display system available for breast tomosynthesis. It is cleared by the US Food and Drug Administration (FDA) for use in standard and multi-frame digital mammography as well as breast tomosynthesis.

Quick readings, exceptional results

The Mammo Tomosynthesis 5MP ensures instant delivery of images without motion blur, increasing correct diagnosis and swift workflow.

Bright images, more details

Featuring twice the brightness of conventional systems and lasting twice as long, the Mammo Tomosynthesis 5MP offers unrivalled image precision and visibility of the most subtle details.

Less noise, improved accuracy

Screen noise often hides subtle details. That's why the Mammo Tomosynthesis 5MP ensures pixel-perfect images without disturbing screen noise, offering clearer visibility of differences in tissue density.

Guaranteed compliance, diagnostic confidence

 Automated checks of contrast and luminance, in combination with an online calibration service, result in an optimal working environment and worry-free readings.

Certified for mammography imaging Long-lifetime backlights Per Pixel Uniformity correction MediCal QA software
included Ultra-smooth grayscale
precision Standard 5-year warranty 10 bit Look Up Table Cleared for breast tomosynthesis High-speed cine imaging without blur 'Hot light' button for extra brightness Adjustable display positioning Integrated front-of-screen sensor

Features

  • RapidFrame ™: RapidFrame technology counteracts motion blur when scrolling through a stack of images due to a high pixel refresh rate.
  • Per Pixel Uniformity™: PPU measures and adjusts the luminance of each pixel, making every pixel permanently DICOM compliant.
  • SmoothGray™: SmoothGray generates ultra-precise representations of grayscale images and eliminates quantization artifacts, reducing the overall noise in the images.
  • DuraLight Nova™: the DuraLight Nova backlight ensures a diagnostic luminance of 1,000 cd/m². In addition, they last twice as long without increasing power consumption.
  • I-Luminate™: a push on the 'hot light' I-Luminate button will temporarily boost display brightness, allowing inspection of subtle details or comparison of digital exams with film-based priors.
  • I-Guard™: the integrated I-Guard sensor continually guards and adjusts the luminance output of the display, ensuring continuous compliance with the DICOM standard.
  • QAWeb: the innovative MediCal QAWeb system is an easy-to-use, web-based tool for automated calibration and Quality Assurance.
  • Adjustable dual-head stand: the dual-head stand allows users to angle the displays to fit their preferred position for optimum viewing.
  • 5-year warranty: the Mammo Tomosynthesis 5MP is covered by a standard 5-year warranty.
Screen technology TFT AMLCD Dual Domain IPS WideView
Active screen size (diagonal) 541 mm (21.3")
Active screen size (H x V) 337.9 x 422.4 mm (13.3 x 16.6")
Aspect ratio (H:V) 4:5
Resolution 5MP (2048 x 2560)
Pixel pitch 0.165 x 0.165 mm
Color imaging No
Gray imaging Yes
Number of grayscales (LUT in/LUT out) 1024 gray levels (10/12)
Viewing angle (H, V) 176°
Per Pixel Uniformity (PPU) Yes
RapidFrame technology Yes
I-Luminate button Yes
Ambient Light Compensation (ALC) Yes
I-Guard Yes
Maximum luminance 2100 cd/m²
DICOM calibrated luminance (ULT off) 1000 cd/m²
Contrast ratio (dark reading room, typical) 950:1
Response time (Tr + Tf) 15 ms (typical)
Scanning frequency (H; V) 30-150 kHz; 15-80 Hz
Housing color Gray
Video input signals DP, DVI
Video inout terminals NA
USB ports 1 upstream + 1 endpoint, 2 downstream
USB standard 2.0
Power requirements (nominal) 100-240 V
Power consumption (nominal) 125 W
Power save mode Yes
Power management DVI-DMPM
Dot clock 280 Mhz
OSD languages English, French, German, Italian, Spanish
Dimensions with stand (W x H x D) 392 x 558 x 250 mm
Dimensions w/o stand (W x H x D) 392 x 484 x 123 mm
Dimensions packaged (W x H x D) 780 x 550 x 261 mm
Net weight with stand 15.4 kg
Net weight w/o stand 10.9 kg
Net weight packaged w/o stand 17.3 kg
Height adjustment range 100 mm
Tilt -5° / +24°
Swivel -45° / +45°
Pivot 90°
Mounting standard VESA (100 mm)
Screen protection Protective, non-reflective glass cover
Recommended modalities breast tomosynthesis, mammography, CT, MR, US, DR, CR, NM, Film
Certifications UL 60601-1 2ND EDITION, CAN/CSA-C22.2 NO. 601.1-M90:2005, IEC 60601-1 2ND ED:1988 + A1:1991 + A2:1995, IEC 60950-1:2005 2ND EDITION, CE - 2004/108/EC, CE - 93/42/EC, A1:2007/47/EC CLASS IIB, DEMKO - EN 60601-1, CCC - GB9254-2008 + GB4943-2001 + GB17625.1-2003, BSMI - CNS13438(95) + CNS14336(94), KC, VCCI, FCC class B; FDA 510(k), RoHs
Supplied accessories User manual, Video cable (DisplayPort), Main cables (UK, European (CEBEC/KEMA), USA (UL/CSA; adaptor plug NEMA 5-15P), Chinese (CCC)), USB cable, external power supply, film clip, keyboard light
Optional accessories NA
QA software MediCal QAWeb
Units per pallet NA
Pallet dimensions (W x H) NA
Warranty 5 years
Color support NA
Uniform Luminance Technology (ULT) Yes
