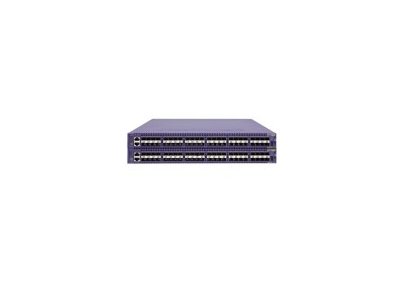

Nexxis Network switch for the digital operating room

Cena na telefon
Produkt niedostępny
The 10 Gbps network switch is the backbone of the digital operating room system architecture. It ensures distribution of video, audio and data with near-zero latency, in and beyond the operating room. All information is distributed over the same fiber cable, ensuring all-round connectivity.

Additionally, one switch can host multiple operating rooms and allows you to monitor and solve technical issues, without entering the OR. This 10 Gbps network switch can easily be interconnected with the existing OR network, featuring high scalability and flexibility inside the operating room and the hospital.

This product is a component of the following products

Nexxis for OR

IP imaging and audio management platform

Network interface
Type 10GBASE-X SFP+
Amount 48 ports
Speed
  • 1G/10G dual-speed at line rate
  • Auto detection of 10GbE or 1GbE
Deployment Flexible use of downlink or uplink per port
Management
  • 1x 10/100/1000 BASE-T RJ-45 management port
  • 1x RJ-45 RS-232 Console port
Switching capacity
Backplane capacity Full-duplex switching capacity of 48 x 10Gbps
Forwarding latency < 5μsec E-2-E (L2 and L3)
Throughput >= 15Mpps per port
Forwarding - Layer 2
MAC addresses
  • MAC learning, aging & static MAC config
  • > 10K MAC address entries
Special frames
  • Pause frames (802.3x)
  • Jumbo frames (<=9KB)
Link aggregation 802.3ad LACP: 48 groups with max. 8 ports/group
VLAN
  • 802.1Q VLAN tagging
  • 802.1v VLAN classification based on port, protocol, MAC
  • 4094 VLANs/switch
QoS
  • 802.1p with 8HW queues per port
  • Avg. of 200KB queue size per port
  • AVB ready - IEEE 802.1AS, Qat and Qav
ACL
  • > 500 wirespeed ingress and egress ACLs
  • ACL rules at L2/L3/L4
  • ACL rules based on port, MAC@, VLAN, IP@
STP 802.1D/w/Q RSTP, MSTP, PVSTP+ (Per VLAN STP)
LLDP 802.1 AB LLDP & LLDP-MED
Forwarding - Layer 3
IP 3K Ipv4 / Ipv6 addresses
IGMP
  • IGMP v1/2/3
  • IGMP Snooping
  • IGMP Proxy
PIM PIM-DM, PIM-SM & MSDP, PIM-SSM
RIP
  • 8RIPv1/2
  • OSPF
Multicast
  • 2000 mcast groups
  • 4000 Ipv4 mcast routes
  • 4000 Ipv6 mcast routes
Misc RFC2131 DHCP, RFC793 TCP, RFC791 IP, RFC826 ARP RFC1591 DNS, RFC768 UDP, RFC792 ICMP, RFC894 IPoE
Management
SNMP SNMPv1/2/3
File transfer RFC783 TFTP, SFTP, SCP
Standard MIBs Interface, Bridge, Ethernet, MAU, ping/traceroute, LLDP, Ipv4 multicast
Console
  • CLI/Telnet (RFC854)
  • CLI/SSHv2
Initialization RFC1542 BOOTP, RFC2131 DHCP & Relay
Timing RFC2030 (S)NTP
Logging RFC3164 SYSLOG
Security
Access control
  • ACL lists on port, MAC@, IP@, VLAN
  • Automatic port shutdown
  • ACE counters
Control protocols
  • RFC2138/2139 RADIUS
  • RFC1492 TACACS+
  • 802.1x authentication + local authentication
  • Guest VLAN
Security protocols
  • SNMPv3, SSHv2, SCP, SFTP
  • RFC 3046 DHCP Option 82
  • With port and VLAN ID
Mechanics
Dimensions
  • Height: 4,4 cm (1.73")
  • Width: 44,1 cm (17.4")
  • Depth: 48,9cm (19.25")
Max. noise 54dB
Fan unit 1+1 hot swappable
Operating conditions
  • Altitude: up to 3000m
  • Humidity: 10% - 90%, relative humidity, not condensing
  • Temperature: 0 - 40ºC
Power supply
  • 450W AC or DC
  • 1+1 load-balanced, hot-swappable
Power consumption < 5W/port at 100% traffic load
Weight 7kg without PSU
MTBF 18y @ 40ºC
Certifications
Safety EN 60950-1, IEC 60950, CSA 60950
EMC
  • FCC Class A
  • EN 55022, 55024, 6100-6-13, 300386
  • CI SPR 22 Class A
  • CE
  • CCC
Environment
  • RoHS & China RoHS
  • WEEE recycling
  • REACh
