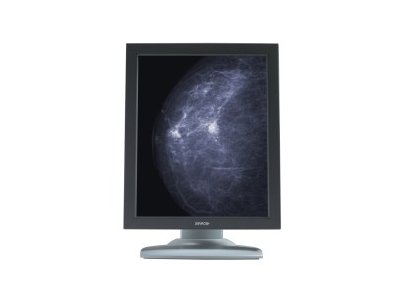

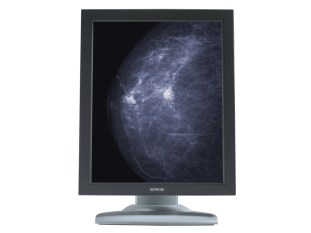

Nio 5MP MDNG-6121 5 MegaPixel (2800 x 2096) diagnostic grayscale display system

Cena na telefon
Produkt niedostępny

Nio 5MP (MDNG-6121) is a flexible diagnostic display system with a resolution of 2800 x 2096. Thanks to its high luminance and contrast, Nio 5MP is a perfect solution for a wide range of medical imaging applications, such as X-ray, PACS, MRI, angiography, computed tomography and mammography on PACS.

High-quality imaging

The Nio 5MP brings high brightness, exceptional crispness and an excellent viewing angle to your readings. Backlight Output Stabilization (BLOS) technology guarantees fast power-up and continuously stabilizes the luminance output of the LCD’s backlight.

Fully transparent calibration and QA

Barco's Nio 5MP is bundled with MediCal QAWeb for automated DICOM calibration, Quality Assurance, display asset management, problem solving and reporting, guaranteeing maximum diagnostic confidence and uptime of your PACS display systems.

The Nio 5MP display system includes:

  • A 5 MegaPixel flat panel display
  • MediCal QAWeb software for automated calibration and Quality Assurance
  • A high-speed, high-performance display controller: check the compatibility matrix
5 MegaPixel resolution (2,048 x 2,560 or 2,096 x 2,800) 21-inch screen diagonal Grayscale display Backlight Output Stabilization MediCal QA software
included 10 bit Look Up Table Anti-reflective protective front cover Usable in portrait and
landscape mode Standard 5-year warranty

Features

  • High-brightness, image crispness and an excellent viewing angle
  • High-speed display controllers for maximum workflow efficiency
  • Continuous diagnostic confidence with Barco's MediCal QAWeb program for Quality Assurance of PACS displays
  • Long-term image confidence with Barco's Backlight Output Stabilization (BLOS) technology
  • Perfect color matching between displays
  • Protective front cover, protecting the valuable LCD against damage from intensive use in clinical rooms
Screen technology TFT AM LCD Dual Domain IPS
Active screen size (diagonal) 541 mm (21.3")
Active screen size (H x V) 432 x 324 mm (17.0 x 12.8")
Aspect ratio (H:V) 4:3
Resolution 5MP (2800 x 2096)
Pixel pitch 0.1540 mm
Color imaging No
Gray imaging Yes
Number of grayscales (LUT in/LUT out) 1024 grey levels (10/12)
Viewing angle (H, V) 170°
Uniform Luminance Technology (ULT) Yes
Per Pixel Uniformity (PPU) No
Ambient Light Compensation (ALC) No
Backlight Output Stabilization (BLOS) Yes
I-Guard No
Maximum luminance 1100 cd/m²
DICOM calibrated luminance (ULT off) 500 cd/m²
Contrast ratio (ULT off) 1000:1
Response time (Tr + Tf) 32 ms
Video input signals DVI-D Dual Link
USB ports 1 upstream (endpoint), 2 downstream
USB standard 2.0
Power consumption (nominal) 78W
Power save mode Yes
Dimensions with stand (W x H x D) Portrait: 382 x 577~637 x 249 mm
Landscape: 488 x 472~532 x 249 mm
Dimensions w/o stand (W x H x D) Portrait: 382x 488 x 114 mm
Landscape: 488 x 382 x x 114 mm
Net weight with stand 12.3 kg
Mounting standard VESA (100 mm)
Screen protection Protective, non-reflective PMMA cover
Recommended modalities CT, MR, US, DR, CR, NM, Film
Certifications UL 60601-1 1ST EDITION, CAN/ CSA-C22.2 NO. 601.1-M90, IEC 60601-1 2ND ED:1988 + A1:1991 + A2:1995, IEC 60950-1:2001 1ST EDITION, CE - 2004/108/EC, CE - 93/42/EC, A1:2007/47/EC CLASS IIB, DEMKO - EN 60601-1, CCC - GB9254-2008 + GB4943-2001 + GB17625.1-2003, BSMI - CNS13438(95) + CNS14336(94), KCC, VCCI, FCC class B, FDA 510K, Rohs
Supplied accessories Getting Started Guide
Quick-Installation Sheet
Video cable (DVI Dual Link)
Main cables (UK, European (CEBEC/KEMA), USA (UL/CSA; adaptor plug NEMA 5-15P), Chinese (CCC))
USB 2.0 cable
External power supply
Optional accessories NA
QA software MediCal QAWeb
Warranty 5 years
