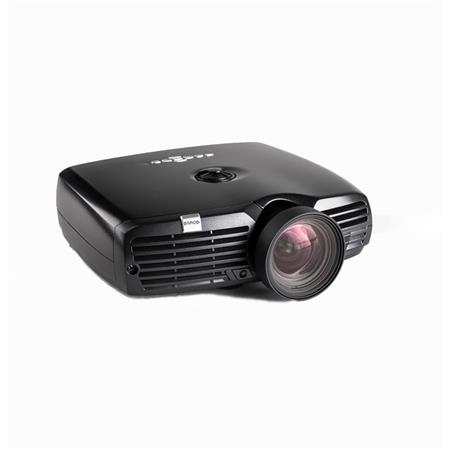

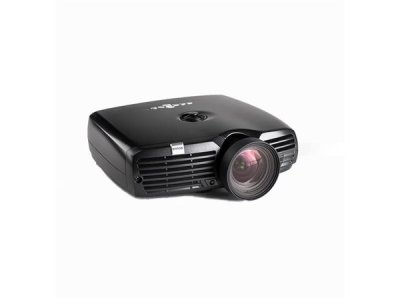

Projektor Barco F22 WUXGA Wide VizSim (R9023049)

32 050,00 zł
Produkt dostępny

Liczba sztuk

The white F-22 WUXGA Multimedia Projector with Wide Lens and VizSim Color Wheel from Barco is a professional installation projector adaptable to a range of use cases, such as flight simulators and theme park rides, museums, visitor attractions, and more. The projector features a brightness of up to 1400 lumens (depending on settings), has a native WUXGA (1920 x 1200) resolution and native 16:10 aspect ratio format. In addition to its native aspect ratio and resolution, through internal scaling, the F22 can accommodate a wide range of formats, from 480p SD all the way up to WUXGA (1920 x 1200).

The F22 features connectivity to accommodate a variety of sources. There are HDMI and DVI inputs for HDTV and digital computer sources. There is a VGA port for analog computer sources or for integration with existing A/V installations. Plus, there are composite, component, and S-video inputs to cover most analog video sources, whether SD or HD.

For remote operation, there is an Ethernet port that enables control across a local network, as well as an RS-232 port with loop-through for integration with automation systems such as Crestron. Finally, there is a USB port for direct operation from a computer.

EN17 Short Throw Lens
The Wide Angle Lens features a throw ratio of 1.09:1 with 720p, 1.00:1 with SXGA+, 0.92:1 with 1080p, and 0.92:1 with WUXGA. It can be considered a short throw lens - ideal where the projector needs to be placed relatively close to the screen. Throw ratio is one of the most important specifications a projector lens has as it tells you the image size (width) you will get at a given distancefrom the screen
The Right Color Wheel for Your Configuration
The F22 is available with a range of color wheel options, including High Brightness, Graphics, or VizSim, each with specific characteristics. As the VizSim color wheel focuses on color quality, it lowers color cross-talk and contamination, and reduces artifacting. The Graphics version offers a lower saturation but higher brightness for general AV use, and the High Brightness option provides high-brightness while retaining accurate color reproduction. This particular projector features the VizSim color wheel.
Simplified Installation and Maintenance
The F22 can be installed in motion simulators without extra mounting hardware. And, as there's no need to dismount the projector when replacing the lamp, you can simply take off the front panel so that mechanical and optical settings are left untouched.
Integrated Automation Software
Thanks to the built-in real time clock and timer, the F22 can be set to perform a specific task - such as automatically starting and switching off, switching between various sources at set intervals. Up to 10 different programs can be stored individually.
Stereo 3D Support
The F22 features INFITEC EX 3D support, a stereoscopic 3D technology based on interference filters that sees use in cinema projection and other professional visualization applications.
Fully Networkable
Most projector settings and features can be set via the built-in web page, thus allowing for remote asset management.
Image Display
Display System 1-Chip DLP
Native Resolution WUXGA - 1920 x 1200
Supported Resolutions SXGA+ - 1400 x 1050
Full HD 1080p - 1920 x 1080
Supported Formats Not Specified By Manufacturer
Format NTSC
PAL
SECAM
HDTV Compatibility 1080p
1080i
720p
Pixels Not Specified By Manufacturer
Brightness 1400 Lumens
Projection Angle Not Specified By Manufacturer
Uniformity Not Specified By Manufacturer
Offset Not Specified By Manufacturer
Aspect Ratio Native: 16:10
Supported: 4:3
Supported: 16:9
Contrast Ratio 2D — 2500:1
Dynamic Contrast Ratio Not Specified By Manufacturer
DLP Link 3D Not Specified By Manufacturer
Supported 3D Formats Not Specified By Manufacturer
Color Range R, G, B
Scan Horizontal: 15 - 150 Hz
Vertical: 48 - 190 kHz
Focus Fixed
Lens Not Specified By Manufacturer
Lens Shift Not Specified By Manufacturer
Zoom Not Specified By Manufacturer
Throw Distance Not Specified By Manufacturer
Throw Ratio 0.92:1
Projection Size Not Specified By Manufacturer
Input/Output Connectors
Inputs/Outputs 1x DVI-D Video (Input)
1x HDMI Control (Input)
1x 15-pin VGA Video (Input)
1x HDMI Video (Input)
1x RCA Component Video (Input)
1x S-Video Video (Input)
1x BNC Composite Video (Input)
1x Ethernet Control (Input/Output)
2x 9-pin VGA Control (Input/Output)
1x USB Control (Input/Output)
2x 1/8" (3.5 mm) Mini Control (Input)
1x 1/8" (3.5 mm) Mini Control (Input)
General
Lamp (Bulb) 1x UHP
Replacement Lamp R9801265
Light Source Not Specified By Manufacturer
Color Temperature Not Specified By Manufacturer
Watts Normal Mode: 220 W
Life Normal Mode: 2250 Hours
Eco Mode: 3000 Hours
Fan Noise Not Specified By Manufacturer
Maximum Pixel Clock Not Specified By Manufacturer
Remote Control Yes
Security Not Specified By Manufacturer
System Requirements Not Specified By Manufacturer
Languages Not Specified By Manufacturer
Power Requirements 100-240 VAC,
Battery Not Specified By Manufacturer
Input Current Not Specified By Manufacturer
DC Output Not Specified By Manufacturer
Heat Dissipation 1061 BTU
Power Consumption Not Specified By Manufacturer
Altitude Not Specified By Manufacturer
Temperature Operating
50 to 104°F (10 to 40°C)
Humidity: 20 - 80%
Storage
-4 to 140°F (-20 to 60°C)
Humidity: 10 - 90%
Dimensions (WxHxD) 10.9 x 3.7 x 9.2" / 278.0 x 94.0 x 234.0 mm
Weight 6.39 lb / 2.9 kg
