Christie

Projektor Christie DHD851-Q

69 000,00 zł
Produkt dostępny

Liczba sztuk

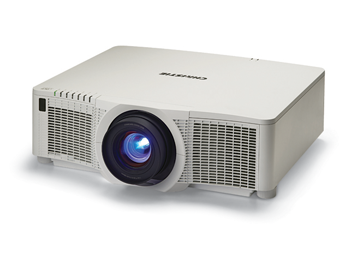

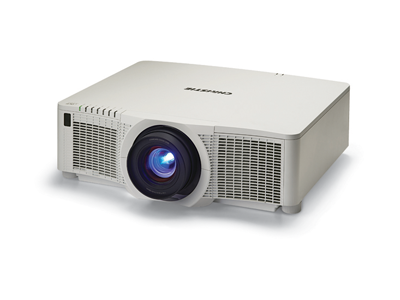

Christie DHD851-Q 1DLP projector

Part Number: 121-030104-01 (white) | 121-030115-01 (black)

Seria projektorów Christie® Q oferuje nowy poziom wysokiej jasności, dzięki czemu uzyskujemy projektor DLP® o najwyższej jakości. Zapewnia wyraźne prezentacje i treści wideo z jakością obrazu oczekiwaną od Christie. Oferujemy szeroki wybór opcji projekcji z eleganckim, ogólnym stylem i wysokowydajnymi funkcjami. Doświadcz wszechstronnego, przystępnego cenowo i doskonałego przetwarzania obrazu dzięki serii Christie Q. W połączeniu z naszą opcją Ultra Short Throw - współczynnik rzutu 0,38: 1 zapewnia wspaniałe obrazy o wysokiej rozdzielczości, aby sprostać wymogom niewielkich przestrzeni, bez konieczności stosowania dodatkowej struktury ścian lub podpory.

Podstawowe cechy:

     Sprawdzona technologia DLP
     Doskonała jakość obrazu
     Niezawodność i wszechstronność
     Funkcje oszczędzania energii
     Niskie koszty utrzymania
     Cechy wysokiej wydajności
     Wybór pomiędzy czarnymi lub białymi modelami
     Wiodące w branży gwarancje i wsparcia
     Tryb symulacji DICOM dla celów szkoleniowych

Crestron Connected


Brightness

  • 7,500 centre (7,200 ANSI) lumens

Contrast

  • 2500:1 full on, full off

Uniformity

  • ≤90%
Display

Type

  • 1-chip 0.65" DMD

Native resolution

  • 1920 x 1080 HD
Lamp

Type

  • Dual 350W UHP

Life

  • Up to 2000 hours in standard mode
  • Up to 4000 hours in eco mode*
  • Up to 1000 hours in portrait mode
Input

Standard

  • Computer  D-sub 15 pin mini jack x1
  • 5BNC connector x1
  • BNC connector x1 (composite)
  • HDMI connector x2
  • DVI-D connector x1
  • RJ-45 x1 (HDBaseT)
  • D-sub 9 pin x1 (RS232c)
  • RJ-45 x1 (LAN)
  • USB type A connector x1 (optional wireless USB or PC-less)
  • Wired remote control (3.5mm)
  • 3G-SDI (only available on DHD851-Q)

Signals

  • 525i(480i)
  • 525p(480p)
  • 625i(576i)
  • 1125i(1080i @ 50/60)
  • 750p(720p @ 50/60)
  • 1125p(1080p @ 50/60)

Pixel clock

  • 27MHz~150MHz
Output

Standard

  • Computer  out D-sub 15 pin mini jack x1
  • Wired remote control (3.5mm)

Control & networking

  • RJ-45 x1 (LAN)
  • RJ-45 x1 (HDBaseT)
  • D-sub 9 pin x1 (RS232c)
Lenses

Offsets

  • Vertical: +135 / -50%
    (+105 / -50% with extra short throw zoom lens)
  • Horizontal: +/-22%

Zoom

  • Extra long throw zoom lens (5.7-9.1)
  • Extra short throw zoom lens (0.8-1.0)
  • Short throw zoom lens (1.2-1.8)
  • Standard zoom lens (1.7-2.6)
  • Middle throw zoom lens (2.5-3.8)
  • Long throw zoom lens (3.7-5.9)
Accessories

Standard

  • Power cord  (US cord, 3m) / (Euro cord, 3m)
  • Power cord  (China cord, 3m only for China models)
  • RGB cable  (2m)
  • Wireless remote control / AA" batteries x2
  • Adapter cover
  • Ferrite core and band x2
  • Cable tie x2
  • User's Manual
  • User’s Manual CD x1
    • Safety Guide
    • Quick Setup Guide
    • Network Quick Setup Guide
    • Operating Guide
    • Network Guide
    • Instant Stack Guide
    • Technical Guide
    • Software License Agreement

Optional

  • Replacement lamp - P/N 003-005160-01
  • Replacement hybrid filter - P/N  003-004775-XX
  • Optional wireless dongle (USB) - P/N 121-116109-XX
  • Replacement remote
Enhanced feature sets
  • 2 HDMI input
  • eClarity & HDCR
  • Built in ultra rich colour wheel
  • HD Base T
  • Portrait mode capable
  • Edge blending
  • Geometric correction
  • Status monitor display
  • Motorised zoom, focus and lens shift with memory
  • PC-less presentation
Power requirements
(Dual lamp mode)

Operating voltage

  • 110-120V AC
  • 220-240V AC

Current rating

  • 8.8A +10% or less at 110V-120V AC
  • 4.3A+10% or less at 220V-240V AC

Power consumption

  • AC110 - 120V, 50/60Hz 860W
  • AC220 - 240V, 50/60Hz 810W
  • Less than 0.5W @ standby with saving. (AC230V):
    • Saving mode disables MONITOR OUT, AUDIO OUT, speaker sound, LAN communication and RS232C control except Power ON command in standby

Thermal dissipation

  • 3618BTU(110-120V)
  • 3379BTU(220-240V)
Dimensions

Dimensions (LxWxH) (without lens and feet in min. position)

  • (LxWxH) 463mm x 537mm x 174mm
  • (LxWxH) 18.2" x 21.1" x 6.9"

Net weight (without lens)

  • 17.0kg max (37.5 lbs)

Shipping dimensions

  • (LxWxH) 561mm x 743mm x 315mm
  • (LxWxH) 22.1" x 29.3" x 12.4"

Shipping weight

  • 22.5kg (49.6lbs)
Operating environment

Noise

  • Standard mode: 36dBA / 29dBA Eco mode

Temperature

  • 32-113°F (0-45°C) from sea level to 1600m (5249 feet)
  • 32-104°F (0-40°C) from 1600m (5249 feet) to 3048m (10000 feet)

Altitude

  • 0 to 10000 feet (0 to 3048m)

Humidity

  • 10-80% non-condensing
Regulatory

This product conforms to the following regulations related to product safety, environmental requirements and electromagnetic compatibility (EMC)

  • FCC, Part 15, Subpart B, Class A
  • EN55022/CISPR22 Class A
  • ICES/NMB003 (A)
  • EN55024 / CISPR24
  • IEC 60950-1
  • UL 60950-1
  • EN 60950-1
  • CAN/CSA C22.2 No. 60950-1
  • Directive 2011/65/EU (RoHS)
  • Directive 2012/19/EU (WEEE)
  • EU Regulation (EC) No. 1907/2006 (REACH)
  • Certifications marks (check with Christie for latest update): cULus (Canada & US), CE (EU),  CCC (China), EAC (Russia), RCM (Australia and New Zealand), India (BIS), Mexico (NOM), Saudi Arabia, South Africa
Limited warranty
  • 3 years parts and labour (including light engine)
  • Lamp: 500 hours or one year (whichever comes first)
  • Contact an authorised Christie representative for full details of our limited warranty
