Christie

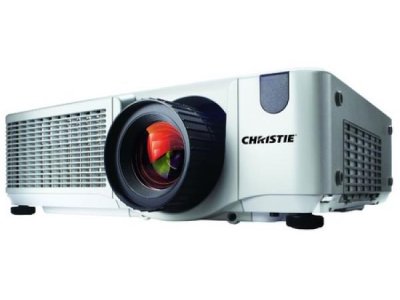

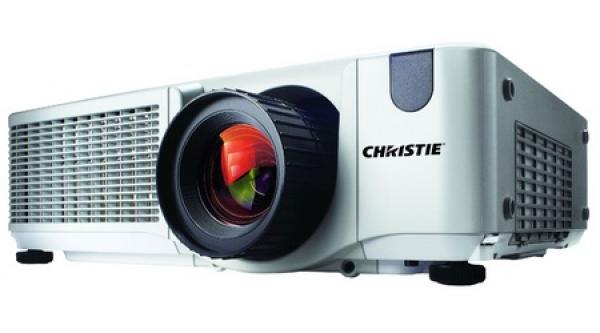

Projektor Christie LWU420 (121-004105-01)

35 980,00 zł
Produkt dostępny

Liczba sztuk

Projektor Christie LWU420 (121-004105-01)


Podstawowe cechy:
Technologia LCD
Rozdzielczość 1920 x 1200 WUXGA
Jasność 4,200 lumenów
Kontrast 1000: 1
Oświetlenie 275 W UHB
Żywotność lampy 2000 godzin, do 3000 w trybie ekologicznym
Długość 14,1 "(357,0 mm)
Szerokość 16,5 "(418,0 mm)
Wysokość 5.5 "(139.0 mm)
Waga 15,9 funtów (7,2 kg)

Zaprojektowany z myślą o aplikacjach, w których potrzebne są pełne funkcje HD, LWU420 jest idealnym rozwiązaniem do obsługi większości małych i średnich sal konferencyjnych i sal lekcyjnych.

Kluczowe cechy:


4200 ANSI lumenów zapewnia dużą jasność

Rozdzielczość WUXGA (1920x1200)

Współczynnik kontrastu 1000: 1 zapach 3LCD lekkie silniki oferują zwiększoną wydajność i trwałość

Przetwarzanie wideo 10-bitowe zapewnia naturalne i gładkie odcienie kolorów oraz odtwarzanie wideo

Najwyższy poziom rozdzielczości danych bez naruszania zawartości wideo w jakości Full HD

Niskie zużycie energii w trybie gotowości - tylko 15 W!

Mała waga

Dostarczany ze standardowym obiektywem: obiektyw z zoomem 1,5-2,9: 1

Dodatkowo, Christie LWU420 jest wyposażony w zaawansowane funkcje, takie jak nieorganiczne panele LCD, przesunięcie obiektywu H / V i łączność Pro AV. Wykorzystuje nieorganiczny silnik światła 3LCD, ta nowa technologia powoduje bardziej naturalny stan czarnego, co znacznie poprawia poziom czerni w szerszym, dynamicznym zakresie. To osiągnięcie pozwala Christie LWU420 uzyskać bogatsze szczegóły w ciemnych scenach wideo.
y

  • 4200 ANSI lumens
  • 1000:1 contrast ratio
  • >90% brightness uniformity
Display
  • 3 x 0.76” Inorganic LCDs
  • Native WUXGA 1920 x 1200 resolution
Lamp
  • 275W UHB
  • Normal mode 2000 hours, eco mode 3000 hours
Signal Compatibility
  • VGA through WUXGA (1920 x 1200)
Video Signal
  • Accepts current HDTV/DTV formats (480i, 480p, 576i, 720p, 1080i, 1080p)
  • NTSC, NTSC 4.43, PAL, PAL M, SECAM, PAL-N
Pixel Clock
  • 27MHz ~ 150MHz
Inputs, Control and Networking
  • HDMI v1.3 x 1 (HDCP Compliant)
  • HD 15 x 1
  • BNC x 5 (R,G,B,H,V & Y, Pb/Cb, Pr/Cr & Composite)
  • YPbPr (component video RCA x 3), 1 RCA composite video
  • Mini DIN 4-pin (S-video)
  • Audio input (x 4), Dsub-9 x 1
  • LAN port
  • R/C Jack – Mini jack x 1
  • Output HD 15 x 1 (loop-through)
  • Audio output x 1 mini jack
  • Output: 8W Stereo
Optical System
  • Manual zoom, focus and lens shift
  • Ships with a standard 2x zoom lens 1.5-2.9:1
Standard Accessories
  • RGB cable
  • Users manual
  • Wireless remote control unit
  • Security label
  • Power cord (US, UK, Euro)
  • Ships with standard lens: 1.5-2.9:1 Zoom Lens
Optional Accessories
  • Filter cartridge
  • Replacement lamp (including filter cartridge)
Enhanced Feature Sets
  • Aspect Ratio Selection; Native 16:10, 16:9, 4:3, Auto Detect
  • Dynamic iris control
  • Customizable start-up logo
  • Auto Digital keystone H/V
  • Anti-theft: kensington style slot and security bar
  • Support for closed caption video display (NTSC)
  • RJ45 LAN connection with network control and SNMP monitoring
  • 3D Keystone™ advanced four corner geometry correction
  • Picture-by-Picture (PbyP)
Power Requirements
  • Operating voltage: 100-120 VAC ±10%/200-240 VAC ±10%
  • Operating current: 5.0A max @ 100-120 VAC 50/60Hz; 2.1A max @ 200-240 VAC 50/60Hz
  • Operating power: 460W max
  • Dissipation: 1569 BTU/hr
Dimensions
  • Body size with lens (LxWxH): 14.1 x 16.5 x 5.5" (357 x 418 x 139mm)
  • Weight: 15.9lbs (7.2kg) with lens
  • Shipping size (LxWxH): 18.8 x 21.6 x 9.6" (478 x 555 x 244mm)
  • Shipping weight: 26.4lbs (12kg)
Noise
  • 36dBA standard mode
  • 30dBA eco mode
Operating Environment
  • Operating temperature: 41-95˚F (5-35˚C)
  • Storage temperature: -4-140˚F (-20-60˚C)
  • Humidity (non-condensing): 10-85%
  • Altitude: 0 to 75000 feet / 0 to 2286 m
Regulatory Approvals
  • This product conforms to the following regulations related to product safety, environmental requirements and electromagnetic compatibility (EMC):
  • FCC Part 15, Subpart B Class A
  • CISPR22/EN55022
  • CISPR24/EN55024
  • UL 60950-1 first edition
  • CAN/CSA-C22.2 No 60950-1-03 first edition
  • IEC60950-1:2001
  • 2002/95/EC RoHS
Limited Warranty
  • Projector: 3 years parts and labor
  • Lamp: 500 hrs or 120 days (whichever comes first) or Contact an authorized Christie representative for full details of our limited warranty




Due to constant research, specifications and features are subject to change without notice.
