Cisco TelePresence System Profile 65-inch Dual

99 999,00 zł
Produkt dostępny

Liczba sztuk

Cisco TelePresence System Profile Series to inteligentne, zaawansowane rozwiązanie dla niewielkich i dużych pomieszczeń do pracy zespołowej. Użytkownicy mają zagwarantowaną prostą i spójną obsługę wideo o znakomitej jakości obrazu. Współpraca staje się łatwa, ponieważ członkowie zespołu są prezentowani w naturalnej, realistycznej postaci. Równocześnie można udostępniać multimedia o wysokiej jakości.



Product Overview

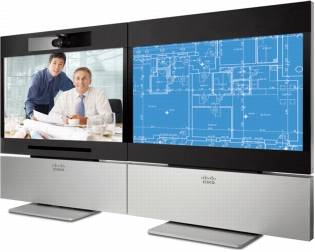

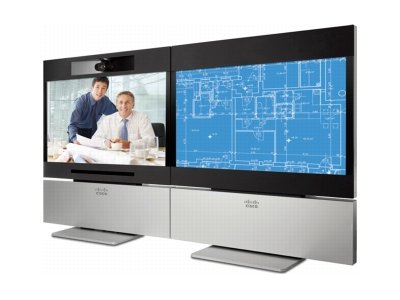

The Cisco TelePresence Profile 65-inch Dual elevates the team video collaboration experience to an entirely new level. With side-by-side 65" LCD monitors, sharing information is easy, intuitive and crystal clear. Designed to integrate into the larger collaboration room, the Cisco TelePresence Profile 65-inch Dual allows participants to share multimedia content, creating a rich user experience.



W przypadku pytań, proszę o kontakt:

adam@kraftmann.com

GSM. 504 58 64 88

tel. 22 490 31 43

Product Specifications

Specification

Description

Unit Delivered Complete With:

• Full HD LCD display(s), Cisco TelePresence Codec C60/C40, Cisco Telepresence touch screen UI, remote control, Cisco TelePresence Precision HD Camera (1080p), Table microphones (2x/3x with single screen; 4x with dual screen), Digital Audio Module, integrated speakers and integrated cabling and cable management

Monitor

• Available with:
• 55-inch Full HD LCD, 16:9 and 1080 x 1920 resolution
• Dual monitor configuration includes 2x 55-inch Full HD LCD monitors

Base

• Available with:
• Floor standing footplate
• Wheel base (only available on 55-inch single)
• Wall mount on pedestal

Bandwidth

• H.323/SIP up to 6 Mbps point-to-point
• H.323/SIP up to 10 Mbps MultiSite

Firewall Traversal

• Cisco Telepresence Expressway technology
• H.460.18 and H.460.19 Firewall Traversal

Video Standards

• H.261, H.263, H.263+, H.264

Video Features

• Native 16:9 Widescreen
• Advanced Screen Layouts
• Intelligent Video Management
• Local Auto Layout

Video Input - Live Video Resolution

Video Input
(Five inputs - C60)

(Four inputs - C401)

Two HDMI Inputs, Supported Formats:

• 1920x1080@60 and 59.94 Hz (1080p60)
• 1920x1080@50 Hz (1080p50)
• 1920x1080@30 and 29.97 Hz (1080p30)
• 1920x1080@25 Hz (1080p25)
• 1920x1080@24 and 23.97 Hz (1080p24)
• 1280x720@60 and 59.94 Hz (720p60)
• 1280x720@50 Hz (720p50)
• 720x480@60 and 59.94 Hz (480p60)
• 640x480@60 Hz (480p60)
• 1600x1200@50 and 60 Hz (UXGA)
• 1280x1024@60 and 75 Hz (SXGA)
• 1024x768@60, 70, 75 and 85 Hz (XGA)
• 800x600@56, 60, 72, 75 and 85 Hz (SVGA)
• 1920x1200@50 and 60 Hz (WUXGA)
• 1680x1050@60 Hz (WSXGA+)
• 1440x900@60 Hz (WXGA+)
• 1280x768@60 Hz (WXGA)

Two (C60) or One (C40) DVI-I Inputs, Supported Formats:

Analog (VGA):

• 1920x1080@60 Hz (1080p)
• 1280x720@60 Hz (720p)
• 1600x1200@60 Hz (UXGA)
• 1280x1024@60 and 75 Hz (SXGA)
• 1280x960@60 Hz
• 1024x768@60, 70, 75 and 85 Hz (XGA)
• 1920x1200@50 Hz (WUXGA)
• 1680x1050@60 Hz (WSXGA+)
• 1440x900@60 Hz (WXGA+)
• 1280x800@60 Hz (WXGA)
• 1280x768@60 Hz (WXGA)

Analog (YPbPr):

• 1920x1080@60 Hz (1080p60)
• 1920x1080@50 Hz (1080p50)
• 1920x1080@30 Hz (1080p30)
• 1920x1080@25 Hz (1080p25)
• 1280x720@60 Hz (720p60)
• 1280x720@50 Hz (720p50)
• 1280x720@30 Hz (720p30)
• 720x576@50 Hz (576p50)
• 720x480@60 Hz (w480p60)

Digital (DVI-D):

• Same as HDMI, ref. above

One S-video/Composite Input (BNC Connectors):

• PAL/NTSC
• Extended Display Identification Data (EDID)

Video Output
(Three Outputs C60)

(Two Outputs C401)

One HDMI, One DVI-I Output, Supported Formats:

• 1920x1080@60 Hz (1080p60)
• 1920x1080@50 Hz (1080p50)
• 1280x720@60 Hz (720p60)
• 1280x720@50 Hz (720p50)
• 1600x1200@60 Hz (UXGA)
• 1280x1024@60 Hz (SXGA)
• 1024x768@60 Hz (XGA)
• 800x600@60 Hz (SVGA)
• 640x480@60 Hz (VGA)
• 1920x1200@60 Hz (WUXGA)
• 1366x768@60 Hz
• 1360x768@60 Hz
• 1280x768@60 Hz (WXGA)
• VESA Monitor Power Management
• EDID

One Composite Output (BNC Connector) (only on codec C60)

• PAL/NTSC
• Extended Display Indentification Data (EDID)

Live Video Resolutions (Encode and Decode)

• 176x144@30 Hz (QCIF)
• 352x288@30 Hz (CIF)
• 512x288@30 Hz (w288p)
• 576x448@30 Hz (448p)
• 768x448@30 Hz (w448p)
• 704x576@30 Hz (4CIF)
• 1024x576@30 Hz (w576p)
• 640x480@30 Hz (VGA)
• 800x600@30 Hz (SVGA)
• 1024x768@30 Hz (XGA)
• 1280x1024@30 Hz (SXGA)
• 1280x720@30 Hz (720p30)
• 1920x1080@30 Hz (1080p30)
• 1280x768@30 Hz (WXGA)
• 1440x900@30 Hz (WXGA+)
• 1680x1050@30 Hz (WSXGA+)
• 1600x1200@30 Hz (UXGA)
• 512x288@60 Hz (w288p60)
• 768x448@60 Hz (w448p60)
• 1024x576@60 Hz (w576p60)
• 1280x720@30, 60 fps (720p60)
• 1920x1080@60 fps (1080p60) 2
• 720p30 from 768kbps
• 720p60 from 1152kbps
• 1080p30 from 1472kbps
• 1080p60 from 2560kbps

Audio Standards

• G.711, G.722, G.722.1, 64 bit and 128 bit MPEG4
• AAC-LD and AAC-LD Stereo

Audio Features

• CD-quality 20KHz mono and stereo
• Four (C60) or Two (C40) separate acoustic echo cancellers
• 4-port (C60) 2-port(C40) audio mixer
• Automatic Gain Control (AGC)
• Automatic noise reduction
• Active lip synchronization
• ALD (Assistive Listening Devices) support with acoustic echo cancellation (only C60)

Audio Inputs (Seven Inputs C60)

(Five Inputs C40)

• Four (C60) or Two (C40) microphone, 48V phantom powered, XLR connector each with separate echo cancellers and noise reduction; all microphones can be set for balanced line level
• Two RCA/Phono, Line Level: Stereo PC input, configurable to 2 x RCA/Phono, Line Level: Mono auxiliary/DVD input
• One HDMI, digital: Stereo PC/DVD input

Audio Outputs (3 Outputs)

• Two RCA/Phono, line level, stereo main audio, configurable to S/PDIF or two RCA/Phono outputs, line level, mono to recording device
• One HDMI, digital, stereo main audio

Dual Stream

• H.239 (H.323) dual stream
• BFCP (SIP) dual stream
• Support for resolutions up to 1080p30/WUXGA, independent of main stream resolution (C60)
• Support for resolution up to WXGA, independent of main stream resolution (C40)

Multipoint Support

• Four-way embedded SIP/H.323 Multipoint (see reference Multisite Features)
• Cisco Telepresence Multiway support (requires Cisco Telepresence Video Communication Server (Cisco VCS) and Cisco Telepresence MCU)
• Ability to natively join multipoint conferences hosted on Cisco Telepresence Multipoint Switch (CTMS)

Multisite Features (Embedded Multipoint)

• Four-way 720p30 (C60)/w576p30 (C40) High Definition SIP/H.323 MultiSite
• Full individual audio and video transcoding
• Individual layouts in MultiSite continuous presence (takes out Self View)
• H.323,SIP and Voice over IP (VoIP) in the same conference
