PCS-XG55 - High Definition Video Conferencing System

24 956,70 zł
Produkt dostępny

Liczba sztuk

This easy to use HD video conferencing system offers a stylish, affordable solution for everyday business communications.

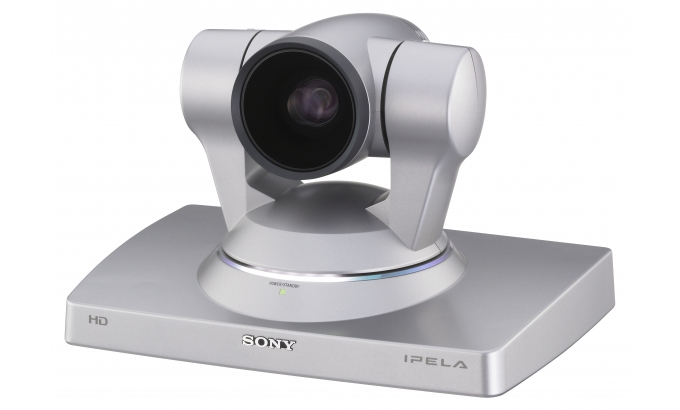

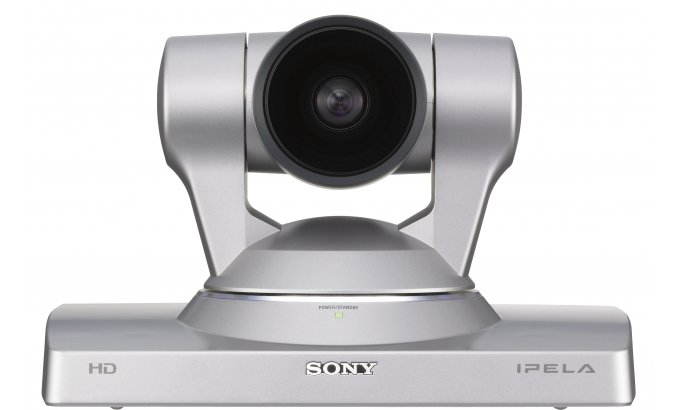

The compact video conferencing system features a High Definition camera with advanced new ‘BrightFace’ technology by Sony. You’ll enjoy crisp images in any lighting conditions – even dimly lit rooms where a projector’s being used. Superb picture quality is partnered by clear, echo-free stereo audio so every participant can be seen and heard clearly.

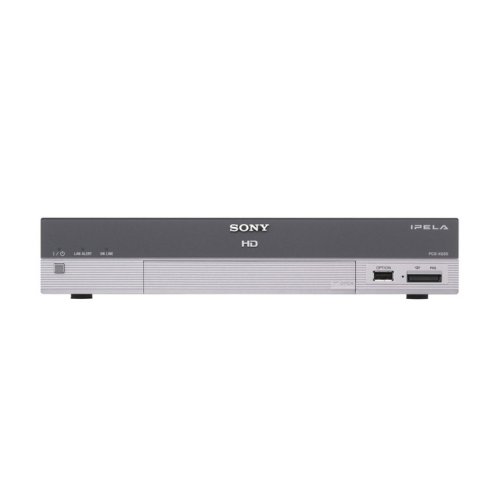

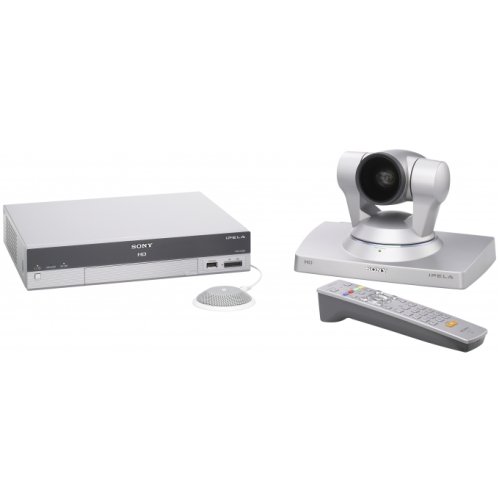

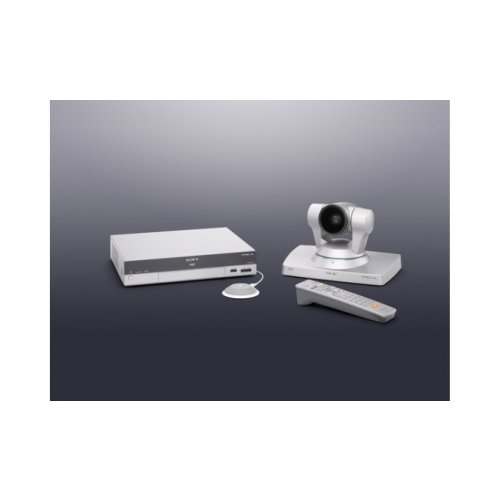

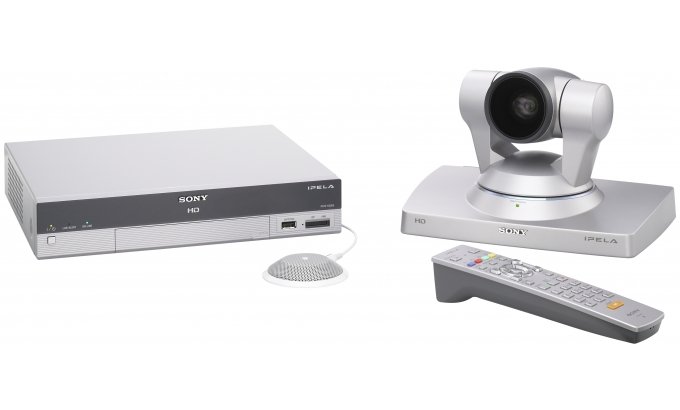

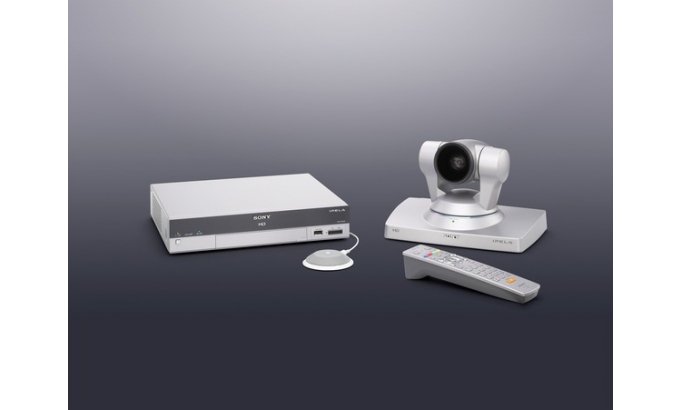

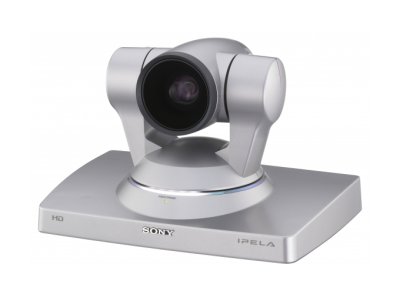

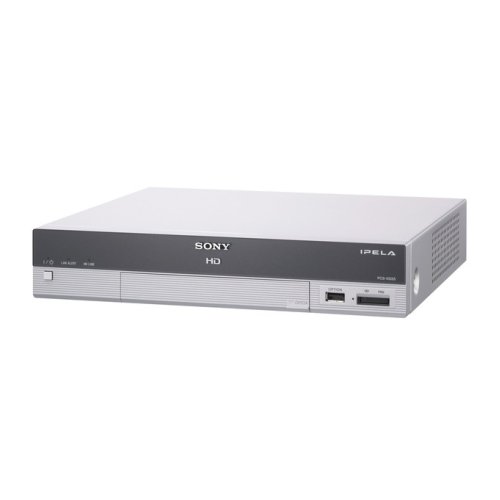

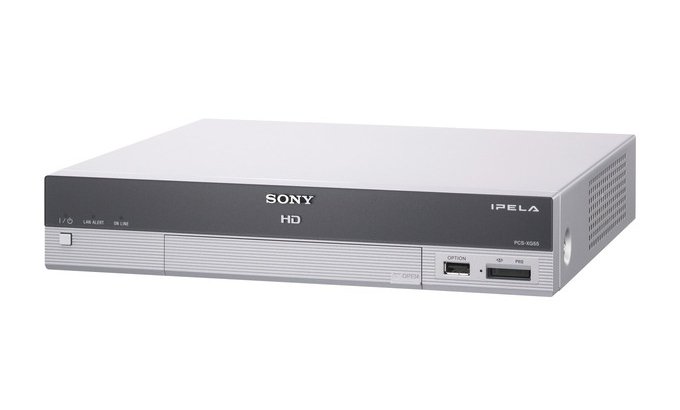

Everything’s included: video codec unit, PTZ camera and microphone, plus a cable for connecting a video monitor, TV or display. Set-up and operation are refreshingly straightforward. The supplied remote commander allows easy one-touch dialling from your contacts list. Conference participants can share smooth, clear video and voice together with presentations from your PC.

Also available, the PCS-XG55S is a ‘standalone’ version that does not include a camera. The PCS-XG55/9DS system bundle includes PCSA-DSG80 Data Solution Software for simultaneous sharing of HD video and presentations from a connected PC.


W przypadku pytań, proszę o kontakt:

GSM. 504 58 64 88

tel. 22 490 31 43

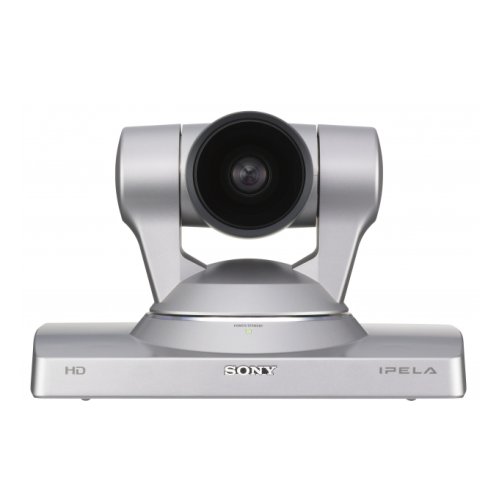

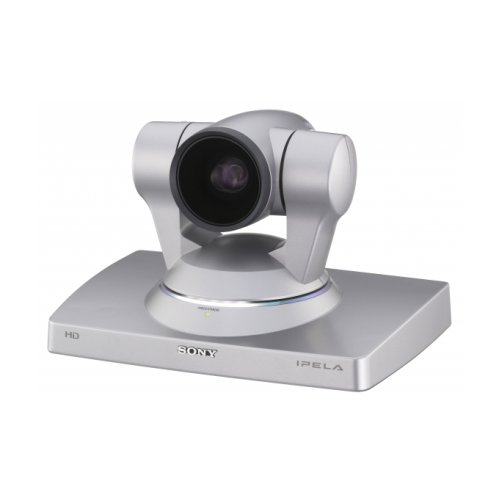

Image Sensor 1/3-type CMOS image sensor
Image Sensor (Number of Effective Pixels) 2 Megapixels
Output Pixels (H x V) 1920 x 1080
Frame Rate 60 fps
S/N Ratio 50 dB
Brightness Control Auto/Manual
Zoom Ratio x40 zoom (x10 optical zoom, x4 digital zoom)
Focusing System Auto/Manual
Horizontal Viewing Angle Approx. 8° to 70°
Focal Length f = 3.4 mm to 33.9 mm
F-Number F1.8 to F2.1
Minimum Object Distance 100 mm (At WIDE end)
Pan/Tilt Angle Pan ±100°/Tilt ±25°
Preset Position 100 positions
Power Supply Supplied from Codec Unit
Other Features Auto Gain Control, Auto White Balance, Backlight Compensation
BrightFace function, Noise reduction, VISCA output to the second camera

Key Features

Data Sharing PC images up to SXGA resolution is supported.
Video annotation function is available.
Lip Synchronization AUTO/OFF
Mic Off Function ON/OFF
Streaming/Recording Feature Audio: 64 kbps
Video: 0 kbps to 512 kbps (5-step)


Maximum Frame Rate
H.264 - 720p

H.261 - QCIF, CIF
H.263 - QCIF, CIF
H.264 - QCIF, CIF, 4CIF, wCIF, w432p, w4CIF

H.263 - 4CIF
Communication Protocol Standards H.261, H.263, H.263+, H.263++, H.264, H.264 High profile, MPEG-4 SP@L3
Resolution 4:3 - QCIF (176 x 144), CIF (352 x 288), 4CIF (704 x 576)
16:9 - wCIF/w288p (512 x 288), w432p (768 x 432), w4CIF (1024 x 576), 720p (1280 x 720)
Bit Rate 64 kbps to 4,096 kbps
Screen Layout Full Screen, PinP, PandP, SideBySide


Bandwidth and Coding MPEG-4 AAC Stereo: 22 kHz at 192 kbps (IP only)
MPEG-4 AAC Mono: 14 kHz at 48 kbps, 64 kbps, 96 kbps
MPEG-4 AAC Mono: 22 kHz at 64 kbps, 96 kbps (IP only)
G.711: 3.4 kHz at 56 kbps, 64 kbps
G.722: 7.0 kHz at 48 kbps, 56 kbps, 64 kbps
G.728: 3.4 kHz at 16 kbps
Other Features Stereo echo-cancelling (ON/OFF), Auto Gain Control, Noise Reduction


QoS (Quality of Service) Adaptive FEC (Forward Error Correction), Real-time ARQ (Auto Repeat reQuest), ARC (Adaptive Rate Control), IP Precedence, DiffServe
Other Network Features Packet reordering, TCP/UDP port setting, NAT, PPPoE, UDP shaping, Encryption, Auto gatekeeper discovery,UPnP[[F_ZD0006]], URI Dialing, IPv6

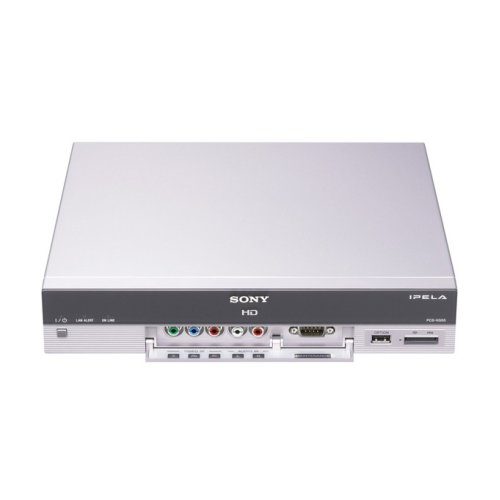

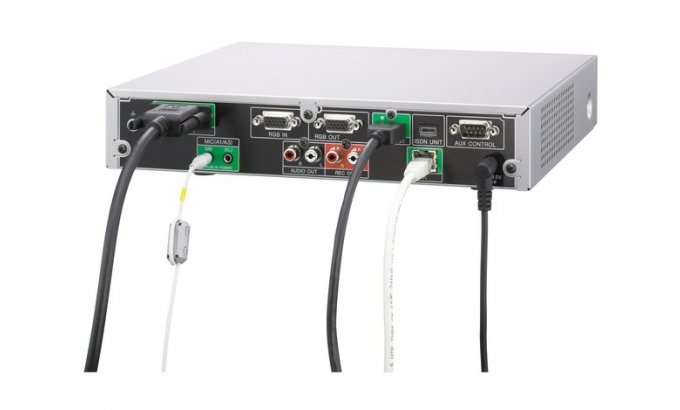

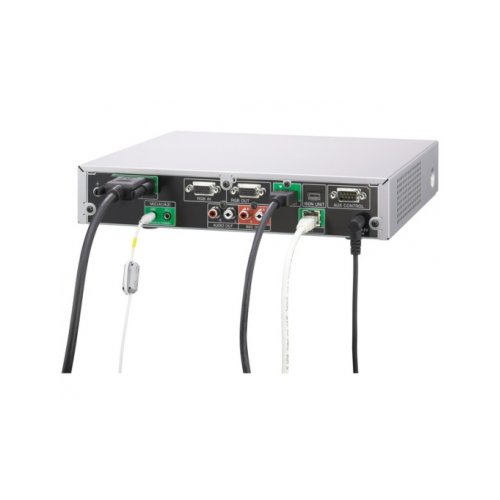

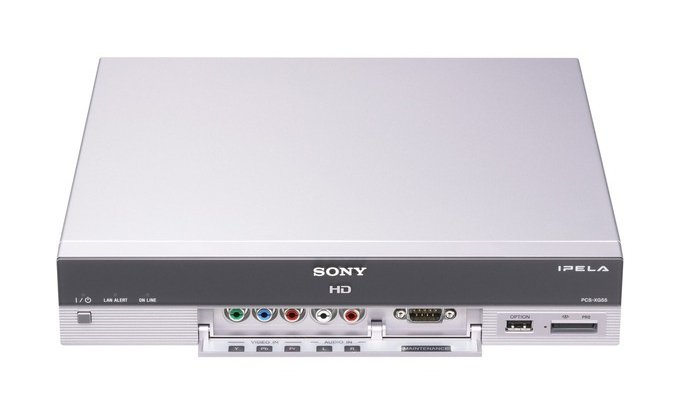

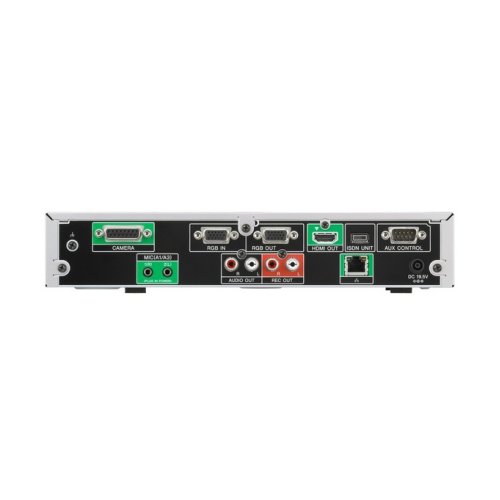

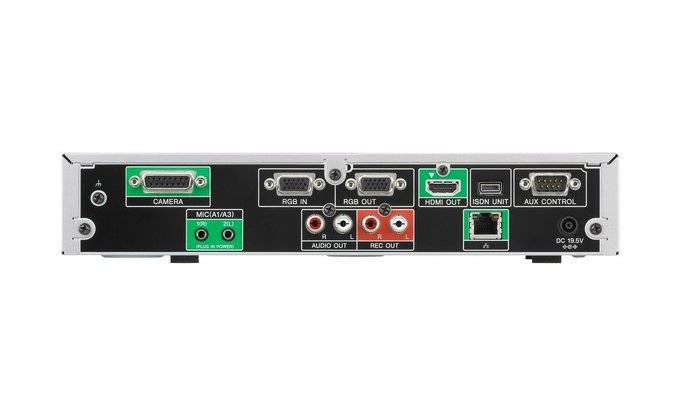

Video Input AUX video inputs (Y/Pb/Pr x 1, RGB x 1)
Video Output HDMI x 1, RGB x 1
Control Input RS-232C x 1
Audio Input External analog microphone input Mini-jack (Plug in power) x 2 (L/R)
Audio Input (MIC/AUX) x 1 (Phono jack, stereo)
Audio Output HDMI (video, audio) x 1, Line Output (Phono jack, stereo) x 1, REC Output (Phono jack, stereo) x 1
Network Port 10BASE-T/100BASE-TX x 1, ISDN Unit Interface x 1
Memory Stick Slots 1
Maintenance Interface RS-232C x 1
Others Tablet Interface x 1


Communication Protocol Standards ITU-T H.320, H.323[[F_ZD0007]], IETF SIP
ITU-T (excluding audio/video standards) H.231, H.241 H.242, H.243, H.245, H.350, H.460.18, H.460.19
IETF RFC2190, RFC3016, RFC3047, RFC3261, RFC3264, RFC3550, RFC3984, RFC4573, RFC4587, RFC4629, RFC4856, RFC4628, RFC5168
Encryption H.233, H.234, H.235 ver.3
Far End Camera Control H.224, H.281
Frame Format H.221, BONDING, H.225.0
Dual Stream H.239 (video and presentation data)


Power Requirements DC 19.5 V (AC Adapter : AC 100 V to 240 V, 50/60 Hz)
Power Consumption 40 W (the codec only)/90 W (incl. PCSA-CXG80 and PCSA-B768S)
Power Consumption (Standby) 10 W (the codec only)/15 W (incl. PCSA-CXG80 and PCSA-B768S)
Operating Temperature 5°C to 35°C
41°F to 95°F
Storage Temperature -20°C to +60°C
-4°F to +140°F
Operating Humidity 20% to 80% (no condensation)
Storage Humidity 20% to 80% (no condensation)
Dimensions (W x H x D)[[F_ZD0001]] Codec:
Approx. 282 x 56 x 244 mm (excluding protrusions)
Approx. 11 1/8 x 2 1/4 x 9 5/8 inches (excluding protrusions)
Camera unit:
Approx. 240 x 152 x 158 mm (excluding protrusions)
Approx. 9 1/2 x 6 x 6 1/4 inches (excluding protrusions)
Mass Codec:
Approx. 2 kg
Approx. 4 lb 7 oz
Camera unit:
Approx. 2 kg
Approx. 4 lb 7 oz
Supplied Accessories PCSA-CXG80 HD camera (1)
PCS-A1 microphone (1)
AC adapter (1)
Power cord (1)
HDMI cable (3m) (1)
RF Remote Commander Unit (1)
Batteries for Remote Commander unit (2)
CD-ROM (Operating
Instructions, Before using this unit, Quick connection guide) (1
Installation Guide (1)
Important notice regarding software (1)
Warranty booklet (1)
Camera cable (3m) for HD camera (1)
Hook-and-loop pads for HD camera (2)
Operating instructions for HD camera (1)
Warranty booklet for HD camera (1)
*1 The values for dimensions are approximate.
*2 It requires the optional data solution software PCSA-DSG80 to send video and presentation data simultaneously.
*3 Available only when local and remote terminals are both PCS-XG80 working in the 1080i mode.
*4 Available only when local and remote terminals are both PCS-XG80 working in the 1080 mode. Input/Output signals are 1080i.
*5 Maximum speed is 4 Mbps when the connected point does not use the PCS-XG80/XA80.
*6 It is unavailable depending on the model.
*7 Interoperable with other manufacturer's endpoint which is compliant to H.323/H.320. It does not mean that all connections are guaranteed.
*8 It requires the optional data solution box PCSA-DSB1S to send PC image.
*9 Composite input requires a conversion cable
