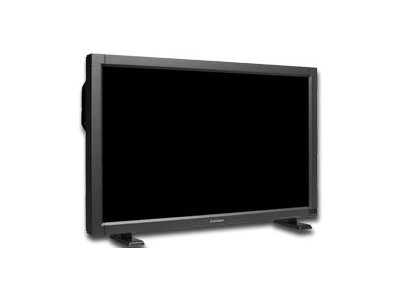

Monitor Mitsubishi 40" WXGA-Wide LCD Display MDT401S

25 380,00 zł
Produkt dostępny

Liczba sztuk

MDT401S

The MDT401s from Mitsubishi Electric is a 40" viewable LCD display combining superior image clarity, exceptional brightness and reliable, long-life operation all in an ultra-thin design. When bigger is better for large format applications, the MDT401s is the ideal choice.



  • Versatile, long-lasting solution for a wide range of signage and information display applications such as transportation centres, hotel lobbies, company reception areas, restaurants, boardrooms and more

  • True WXGA 1280 x 768 resolution for exceptional viewing of 16:9 widescreen and 4:3 standard formats

  • Super bright at 450 cd/m2 for detailed imagery even in high ambient lighting environments

  • High 600:1 Contrast Ratio for superior image detail and truer blacks

  • Natural Colour Matrix™ and sRGB™ for flexible and independent colour control

  • Ergonomically designed to connect to any VESA standard third-party mounting arm or bracket and an overall lightweight construction for easy transport and installation

  • Landscape or portrait orientation for greater application flexibility

  • Two year limited on-site warranty and toll-free technical support

Supplied Accessories

Standard User's Manual, Power Cord, Video Signal Cable, Remote Control, AA Battery x 2, Clamper x 2, Screw x 2, CD-ROM, Ferrite Core x 2, Removeable Foot Mounts x 2, Screw (M5 x 40) for stand

Specification Overview



Model MDT401S

Display type

40" WXGA-Wide LCD Display

Viewable Area

40" (101.6cm) diagonal

Native (Maximum) Resolution

1280 x 768 pixels

Aspect Ratio

16:9

Colour Depth

16.7 million colours

Contrast Ratio

600:1 (typical)

Brightness

450 cd/m² (typical)

Response Time

23 ms (typical)

Viewing Angle (Horizontal, Vertical)

-85°/-86°, +/-85°

Dot Pitch

0.681mm(H) x 0.681mm(V)

Input Terminals

PC

Analogue (15pin mini D-sub cable) x 1
DVI-Digital x 1

Video

Component (5-Port BNC) x 1, S- Video x 1 Composite x 1

Audio

RCA L/R x 1; Stereo mini jack x 1

Output Terminals

Video

Component (5-Port BNC) x 1, Composite x 1

Audio

RCA L/R x 1, External Speaker connections

Control Input

9 pin Mini D-sub (RS232)

Frequency Range

Horizontal Frequency

31.5KHz - 75KHz

Vertical Frequency

58Hz - 62Hz

Video Compatibility

Video

NTSC / PAL

HDTV

480i, 480p, 720p, 1080i

Physical Characteristics

Operating Voltage

Single phase, 50/60HZ, 100VAC to 240VAC ±10%

Dimensions (W x H x D)

949 x 605 x 141(excl. stand)
949 x 643.9 x 306 (incl. stand)

Weight

27.5kg (incl stand)

Temperature (Operating)

5°C ~ 40°C

Air Humidity (Operating)

10% - 80%

Regulatory

Safety

AS/NZS 60950:2000

EMC/EMI

AS/NZS CISPR22:2002 (C-Tick)
